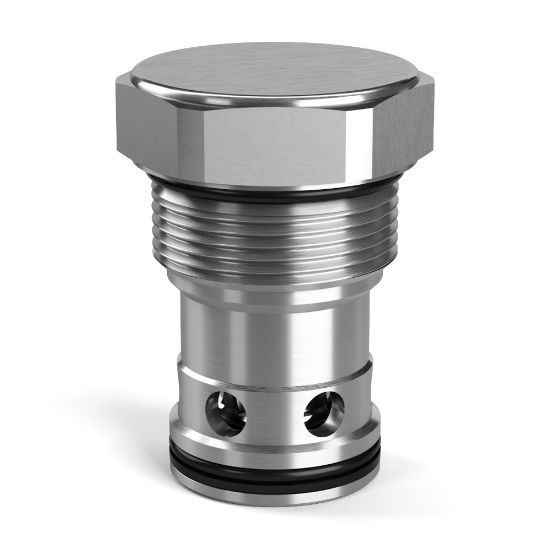

Parker CVH201P65 - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

AFP Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. CVH201P65

$178.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Standard Check
Cracking Pressure	4.5 bar	Maximum Inlet Pressure Rating	350 bar
Maximum Operating Pressure	350 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13	Valve Material	Steel
Weight	0.6 lb	Flow Direction	1-2 Free Flow
Maximum Operating Temperature	250 °F	For Fluid Type	Mineral-based Hydraulic Fluids
Division	Hydraulic Cartridge Systems Division	Cavity Size	C20-2
Minimum Operating Temperature	-34 °C	Maximum Flow Rate	80 Gal/min
Operating Temperature	-34 to 121 °C	Division	Hydraulic Systems Division
Body Material	n/a	Leak Rate	5
Seal Material	Nitrile	Actuation Type	Pressure Sensing
Flow Rate	n/a	Installation Torque	133 Nm
Seal Material	Nitrile	Maximum Flow Rate	80 GAL/MIN, 303 L/MIN
Cracking Pressure	65 PSI, 4.5 BAR
