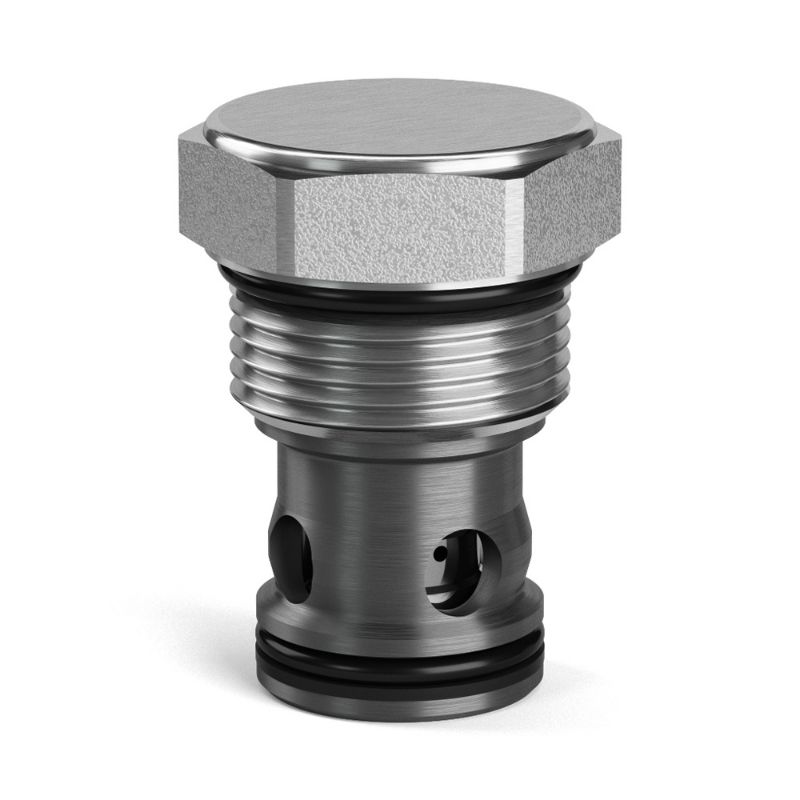

Parker CVH161PV - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CVH161PV

$93.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Leak Rate	5
Maximum Operating Temperature	204 °C	Division	Hydraulic Cartridge Systems Division
Cavity Size	C16-2	Installation Torque	99 Nm
Division	Hydraulic Systems Division	Minimum Operating Temperature	-15 °F
Maximum Flow Rate	225 L/min	Body Material	n/a
Operating Temperature	-26 to 204 °C	Weight	0.27 kg
Maximum Operating Pressure	5000 psi	Seal Material	Fluorocarbon
Flow Rate	n/a	Actuation Type	Pressure Sensing
For Fluid Type	Mineral-based Hydraulic Fluids	Function	Standard Check
Valve Material	Steel	Flow Direction	2-1 Checked
Filter Efficiency Rating	SAE Class 4	Cracking Pressure	0.3 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	5000 psi
Seal Material	Fluorocarbon	Cracking Pressure	5 PSI, 0.3 BAR
Maximum Flow Rate	60 GAL/MIN, 225 L/MIN
