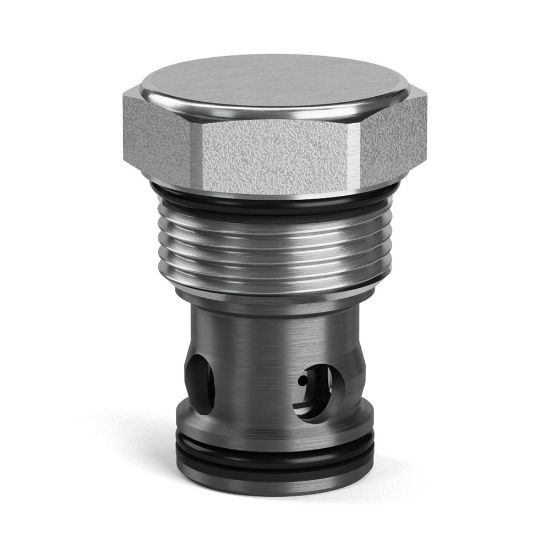

Picture of Parker CVH161P125 - Standard Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CVH161P125 - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. CVH161P125
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileMaximum Operating Temperature250 °F
Flow Raten/aBody Materialn/a
Maximum Operating Pressure5000 psiDivisionHydraulic Cartridge Systems Division
DivisionHydraulic Systems DivisionLeak Rate5
For Fluid TypeSynthetic Hydraulic FluidsValve MaterialHardened Steel
Filter Efficiency RatingSAE Class 4Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-30 °FActuation TypePressure Sensing
Operating Temperature-30 to 250 °FMaximum Inlet Pressure Rating350 bar
Cavity SizeC16-2Weight0.6 lb
Flow Direction1-2 Free FlowFunctionStandard Check
Cracking Pressure125 psiMaximum Flow Rate225 L/min
Installation Torque99 NmSeal MaterialNitrile
Cracking Pressure125 PSI, 8.6 BARMaximum Flow Rate60 GAL/MIN, 225 L/MIN
Product resources

Literature and Reference Materials
