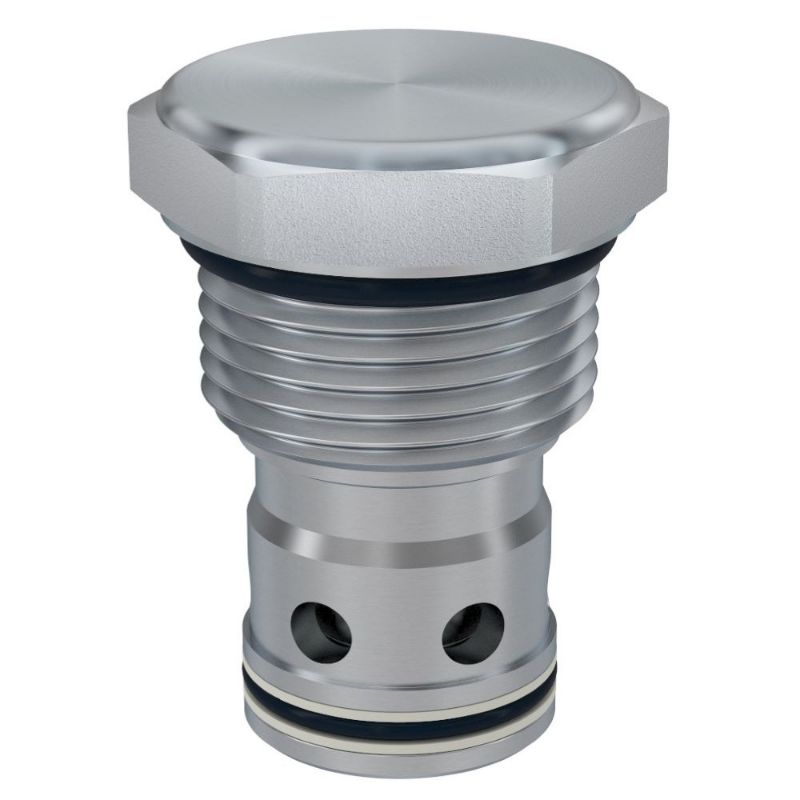

Parker CVH121P - Standard Check Valves

Name: Parker CVH121P - Standard Check Valves
SKU: CVH121P
Price: 76.50 USD
Availability: InStock

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

AFP Availability:

16 In Stock

North Chesterfield, VA

Partner Available:

34 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. CVH121P

$76.50/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Standard Check
Cracking Pressure	25 psi	Flow Direction	2-1 Checked
Weight	0.14 kg	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	350 bar	Filter Efficiency Rating	ISO 4406 18/16/13
Valve Material	Hardened Steel	Maximum Operating Pressure	5000 psi
Maximum Operating Temperature	250 °F	Cavity Size	C12-2
For Fluid Type	Mineral-based Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
Operating Temperature	-34 to 121 °C	Body Material	n/a
Division	Hydraulic Systems Division	Maximum Flow Rate	121 L/min
Minimum Operating Temperature	-30 °F	Leak Rate	5
Seal Material	Nitrile	Actuation Type	Pressure Sensing
Flow Rate	n/a	Installation Torque	76 Nm
Seal Material	Nitrile	Cracking Pressure	25 PSI, 1.7 BAR
Maximum Flow Rate	32 GAL/MIN, 121 L/MIN
