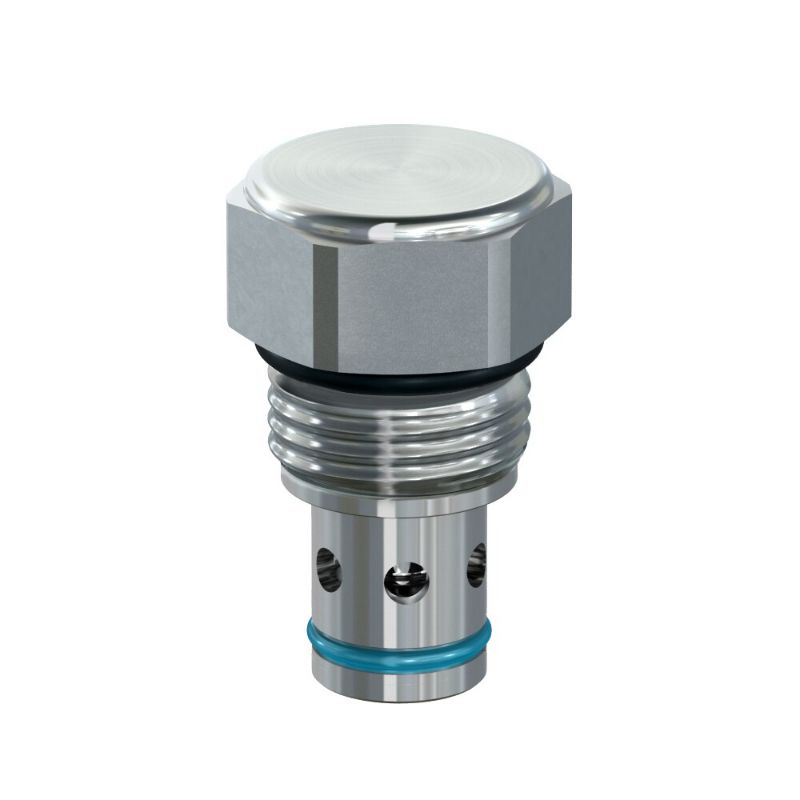

Picture of Parker CVH081PN - Standard Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CVH081PN - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. CVH081PN
$19.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
Maximum Operating Temperature250 °FFlow Raten/a
Body Materialn/aDivisionHydraulic Cartridge Systems Division
DivisionHydraulic Systems DivisionFor Fluid TypeSynthetic Hydraulic Fluids
Valve MaterialHardened SteelFilter Efficiency RatingISO 4406 18/16/13
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-30 °F
Maximum Operating Pressure350 barCracking Pressure5 psi
Actuation TypePressure SensingCavity SizeC08-2
Operating Temperature-30 to 250 °FMaximum Inlet Pressure Rating5000 psi
Weight0.2 lbMaximum Flow Rate38 L/min
Leak Rate2Flow Direction1-2 Free Flow
FunctionStandard CheckInstallation Torque32 to 36 lb-ft
Seal MaterialNitrileCracking Pressure5 PSI, 0.3 BAR
Maximum Flow Rate10 GAL/MIN, 38 L/MIN
