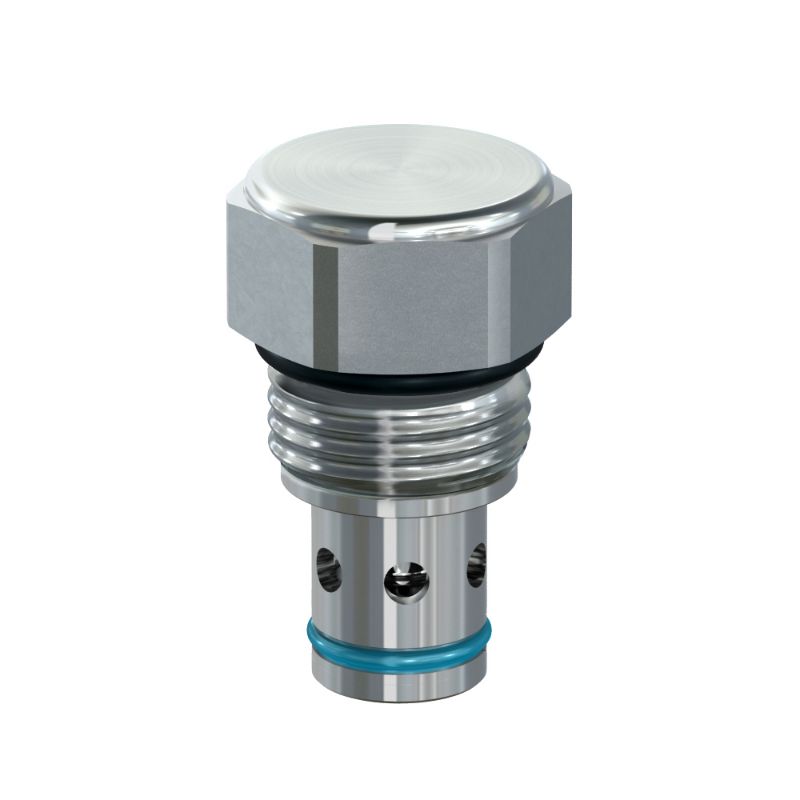

Parker CVH081P65 - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CVH081P65

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-37 °C
Maximum Operating Temperature	200 °F	Weight	0.1 kg
Actuation Type	Pressure Sensing	Cavity Size	C08-2
Maximum Inlet Pressure Rating	350 bar	Operating Temperature	-35 to 200 °F
Seal Material	D-Ring (Standard)	Cracking Pressure	4.5 bar
Maximum Flow Rate	38 L/min	Leak Rate	2
Flow Direction	1-2 Free Flow	Function	Standard Check
Installation Torque	32 to 36 lb-ft	Seal Material	D-Ring (Standard)
Cracking Pressure	65 PSI, 4.5 BAR	Maximum Flow Rate	10 GAL/MIN, 38 L/MIN
