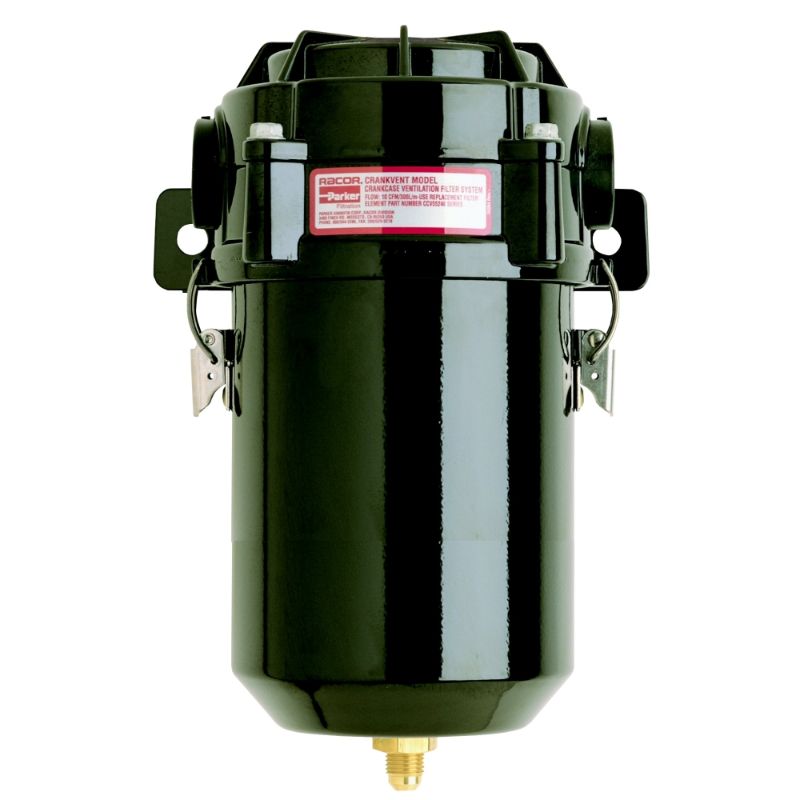

Picture of Parker CV12001-08L - Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CV12001-08L - Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series

Racor Crankcase Ventilation Systems prevent fouling of critical engine components, such as turbochargers and after-coolers, by removing oil contamination from engine bypass gases. Available in open (CV) and closed (CCV) configurations.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. CV12001-08L
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionEngine Mobile Original Equipment DivisionBrandRacor
Indicator TypenoneFor Fluid TypeEngine Blowby Gas
Depth9.3DrainDrain Kit: Hose, Check Valve, (2) Swivel Fitting
Width10.6Heat Type100W Optional: CCV55462-24 (24VDC)
Port Size1-7/8 inch SAE 12Mounting TypeIntegrated Head Bracket
Interface TypeN/AProduct SeriesCartridge Crankcase Ventilation
Materials of ConstructionDie cast head, glass filled nylon and black powder epoxy-coated aluminium bowlHeight17.3
Compatible ElementHigh: CCV55222-12-08Pressure Regulator TypeNone
FunctionNon-Bypass AssemblyInlet LocationLeft
Maximum Flow Rate50 cfm / 1.42 m3/mFiltration RatingsHigh
Maximum Output1000HP / 746 kWType/ConfigurationOpen System
