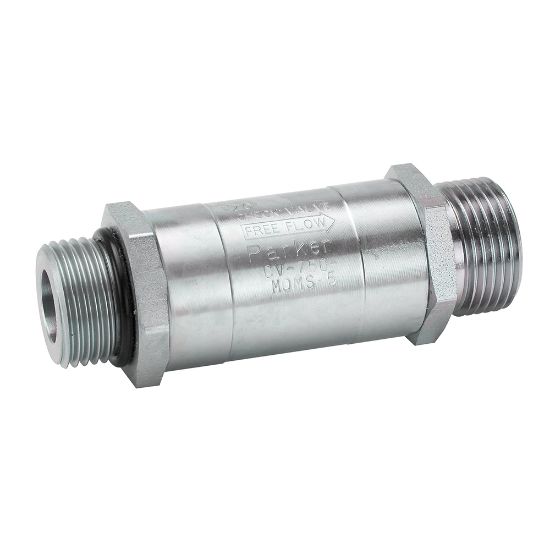

Parker CV-750-MOMS-65 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CV-750-MOMS-65

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Threaded	Seal Material	Elastomeric
Connection Size	1-1/16"-12 UN inch	Configuration	n/a
Seat Type	Metal Seal	Maximum Operating Pressure	3000 psi
Flow Direction	n/a	Minimum Operating Temperature	250 °F
Maximum Operating Temperature	-40 °F	Division	Quick Coupling Division
Actuation Type	Mechanical	Maximum Flow Rate	n/a
Body Material	Steel	Connection Type	Male ORB to Male Seal-Lok ORFS
Inlet Port Connection Type	Male SAE O-ring Straight Thread	Outlet Port Connection Type	Male Seal-Lok
Body Size (inch)	3/4	Outlet Port Size (inch)	1 3/16 - 12 UN
Inlet Port Size (inch)	1 1/16 - 12 UN	Cracking Pressure (psi)	65
