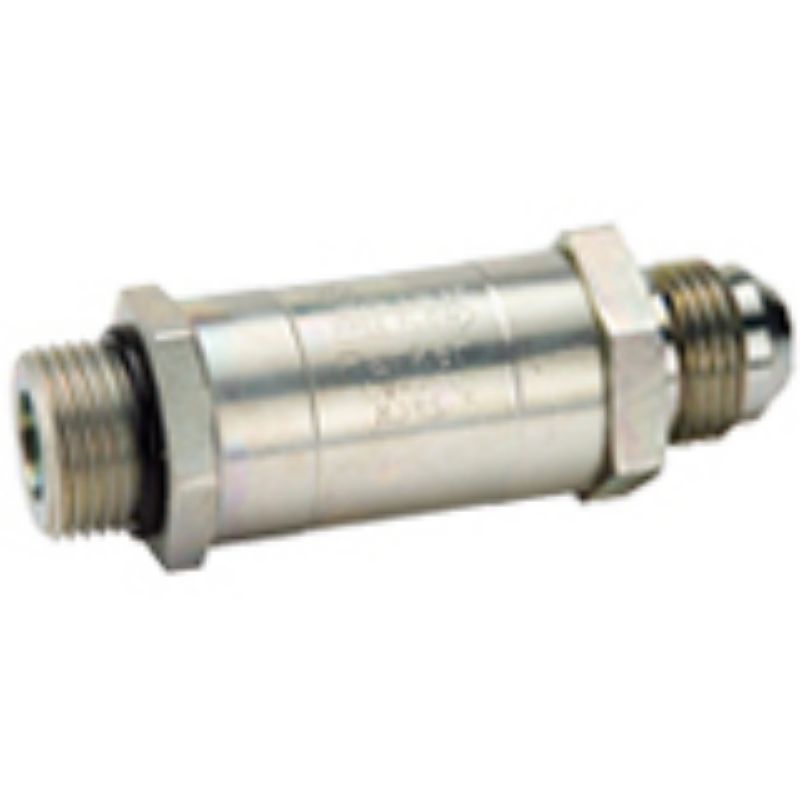

Picture of Parker CV-500-MOMF-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CV-500-MOMF-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. CV-500-MOMF-5
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Flow Raten/aConnection Size3/4"-16 UNF inch
Body MaterialSteelMounting TypeThreaded
Seal MaterialElastomericConfigurationn/a
Seat TypeMetal SealMaximum Operating Pressure3000 psi
Minimum Operating Temperature250 °FFlow Directionn/a
Actuation TypeMechanicalConnection TypeMale ORB to Male Flare JIC
Maximum Operating Temperature-40 °FDivisionQuick Coupling Division
Inlet Port Size (inch)3/4 - 16 UNFOutlet Port Size (inch)3/4 - 16 UNF
Outlet Port Connection TypeMale JIC 37 degreeInlet Port Connection TypeMale SAE O-ring Straight Thread
Cracking Pressure (psi)5Body Size (inch)1/2
