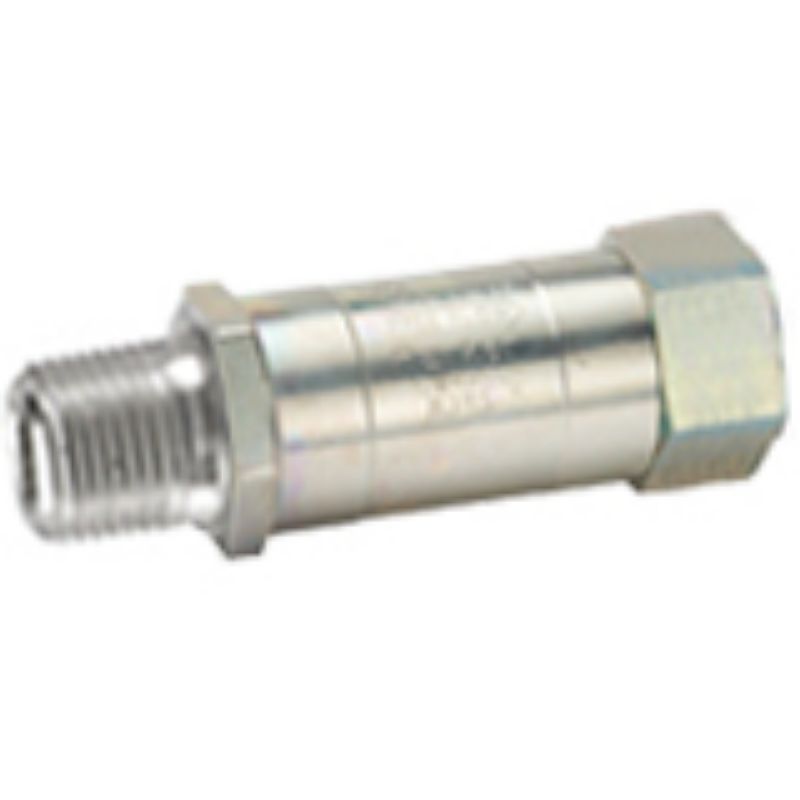

Parker CV-370-MPFP-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CV-370-MPFP-5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Metal	Minimum Operating Temperature	250 °F
Flow Direction	n/a	Actuation Type	Mechanical
Maximum Operating Temperature	-40 °F	Division	Quick Coupling Division
Connection Type	Male NPT to Female NPT	Maximum Flow Rate	n/a
Body Material	Steel	Mounting Type	Threaded
Connection Size	3/8"-18 NPT inch	Seat Type	Metal Seal
Configuration	n/a	Maximum Operating Pressure	3000 psi
Body Size (inch)	3/8	Inlet Port Connection Type	Male NPTF
Outlet Port Size (inch)	3/8 - 18 NPTF	Outlet Port Connection Type	Female NPTF
Inlet Port Size (inch)	3/8 - 18 NPTF	Cracking Pressure (psi)	5
