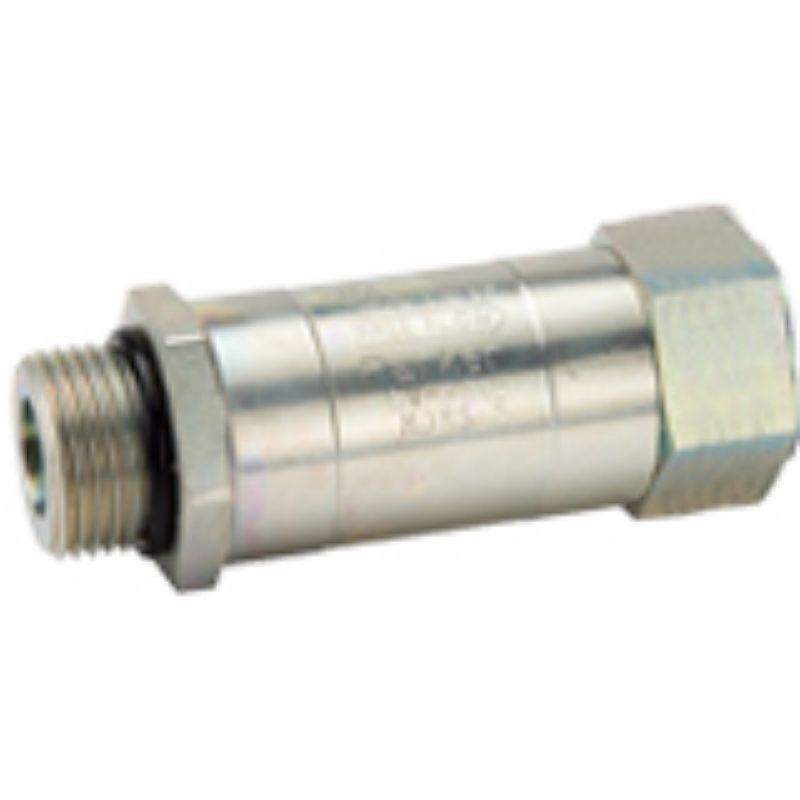

Parker CV-250-MOFO-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CV-250-MOFO-5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Flow Rate	n/a
Mounting Type	Threaded	Maximum Operating Pressure	3000 psi
Seal Material	Elastomeric	Connection Type	Male ORB to Female ORB
Configuration	n/a	Seat Type	Metal Seal
Connection Size	7/16"-20 UNF inch	Maximum Operating Temperature	-40 °F
Flow Direction	n/a	Division	Quick Coupling Division
Actuation Type	Mechanical	Minimum Operating Temperature	250 °F
Inlet Port Size (inch)	7/16 - 20 UNF	Cracking Pressure (psi)	5
Inlet Port Connection Type	Male SAE O-ring Straight Thread	Outlet Port Connection Type	Female SAE O-ring Straight Thread
Outlet Port Size (inch)	5000	Body Size (inch)	1/4
