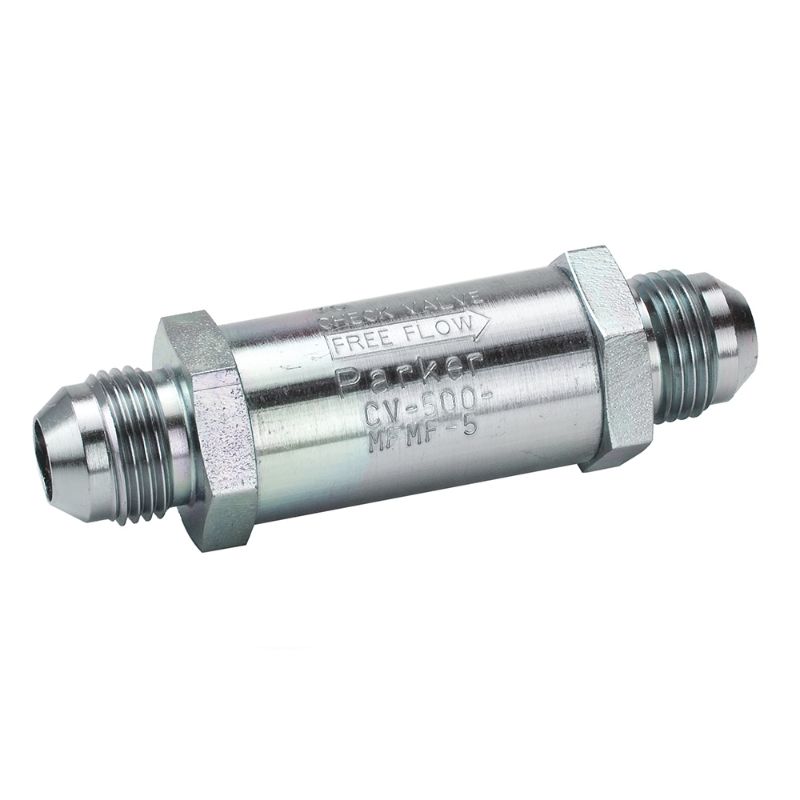

Parker CV-250-MFMF-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CV-250-MFMF-5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	250 °F	Division	Quick Coupling Division
Maximum Operating Temperature	-40 °F	Actuation Type	Mechanical
Connection Size	7/16"-20 UNF inch	Body Material	Steel
Connection Type	Male Flare JIC to Male Flare JIC	Seal Material	Metal
Flow Direction	n/a	Maximum Flow Rate	n/a
Maximum Operating Pressure	3000 psi	Seat Type	Metal Seal
Configuration	n/a	Mounting Type	Threaded
Body Size (inch)	1/4	Inlet Port Connection Type	Male JIC 37 degree
Outlet Port Connection Type	Male JIC 37 degree	Outlet Port Size (inch)	7/16-20 UNF
Cracking Pressure (psi)	5	Inlet Port Size (inch)	7/16 - 20 UNF
