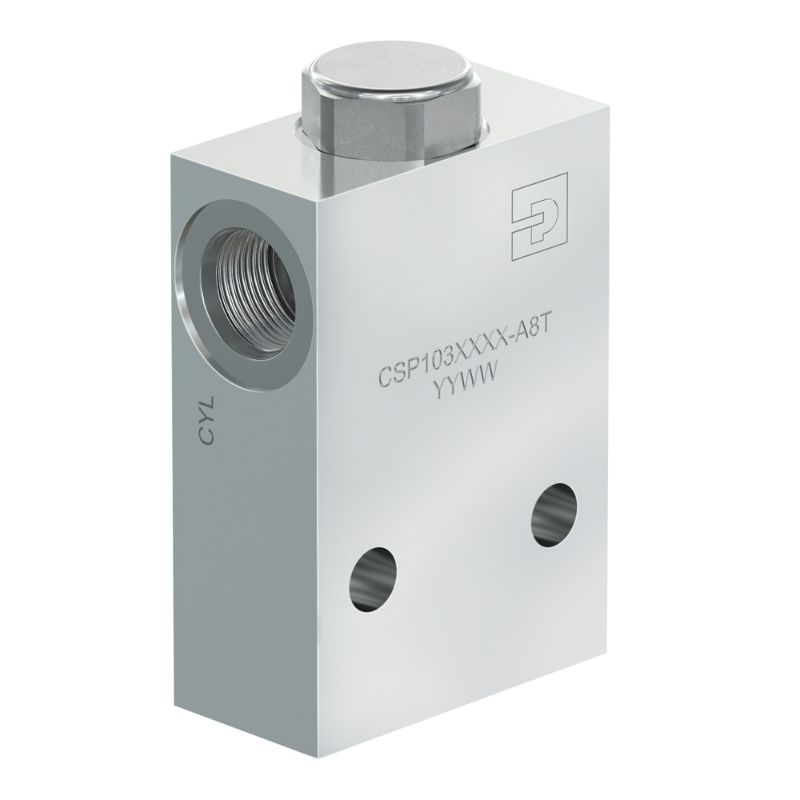

Parker CSPH103P-8T - Pilot Piston Style Pilot Operated Check Valves

Parker’s P.O. check valve’s allow flows up to 226 lpm (60 gpm) and pressure up to 350 bar (5,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CSPH103P-8T

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection Type	SAE	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Hardened Steel	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-37 °C
Maximum Operating Temperature	200 °F	Connection Size	-8
Weight	1.25 kg	Maximum Operating Pressure	350 bar
Cavity Size	C10	Actuation Type	Pressure Sensing
Operation Type	Automatic	Maximum Inlet Pressure Rating	350 bar
Operating Temperature	-37 to 93 °C	Seal Material	D-Ring (Standard)
Sealed Pilot Included	No	Leak Rate	312 Cc/min across Pilot Piston (no seals)
Configuration	Pilot Piston Style	Mounting Type	Line Mounted
Flow Direction	Check Flow Cylinder to Valve	Pilot Pressure Ratio	4:1
Flow Rate	60 L/min	Cracking Pressure	0.3 bar
Maximum Flow Rate	60 L/min	Function	Single Pilot Operated
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Sealed Pilot Included	No	Flow Rate	16 GAL/MIN, 60 L/MIN
Cracking Pressure	5 PSI, 0.3 BAR
