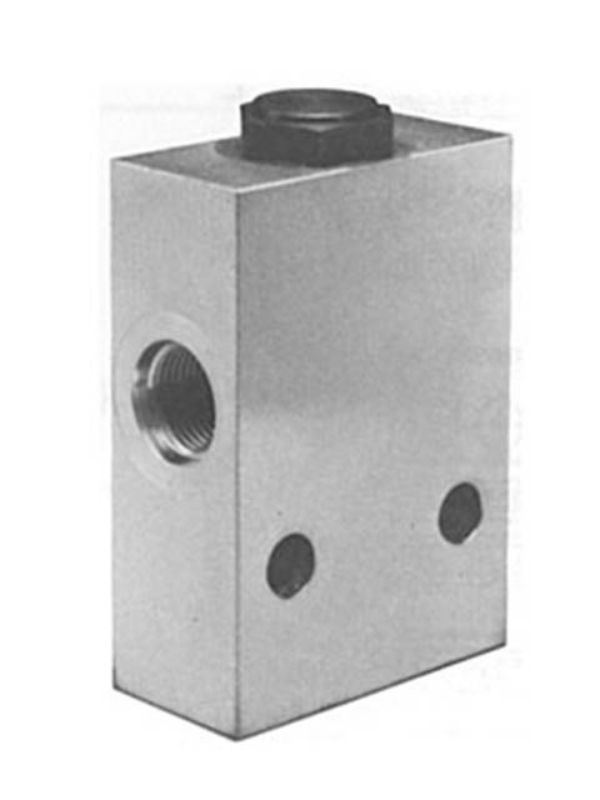

Parker CSP103P150N-A8T - CSP103 Pilot Operated Check Valve

Pilot Piston Pilot Operated Check Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CSP103P150N-A8T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pkg Qty/UOM	1 EA	Body Material	Aluminum
Operating Temperature	-40C to +93.3C (-40F to +200F)	Max Pressure	210 Bar (3000 PSI)
Port	8 SAE	Rated Flow	56 LPM (15 GPM)
Pkg Qty	1	Cracking Pressure	10.4 Bar (150 PSI)
Seals	Nitrile	UOM	EA
Leakage	2 drops/min. (.13 cc/min.) at 350 Bar (5000 PSI)	Operating Temperature	-40C to +93.3C (-40F to +200F)
Valve Type Detail	Pilot Piston	Valve Type	Pilot Operated Check Valve
Parker Division	Hydraulic Cartridge Systems	Seals	Nitrile
Port	8 SAE	Rated Flow	56 LPM (15 GPM)
Series	CSP103	Body Material	Aluminum
Parker Group	Hydraulic	Leakage	2 drops/min. (.13 cc/min.) at 350 Bar (5000 PSI)
Max Pressure	210 Bar (3000 PSI)	Cracking Pressure	10.4 Bar (150 PSI)

Product resources

Check Valves (PDF)
