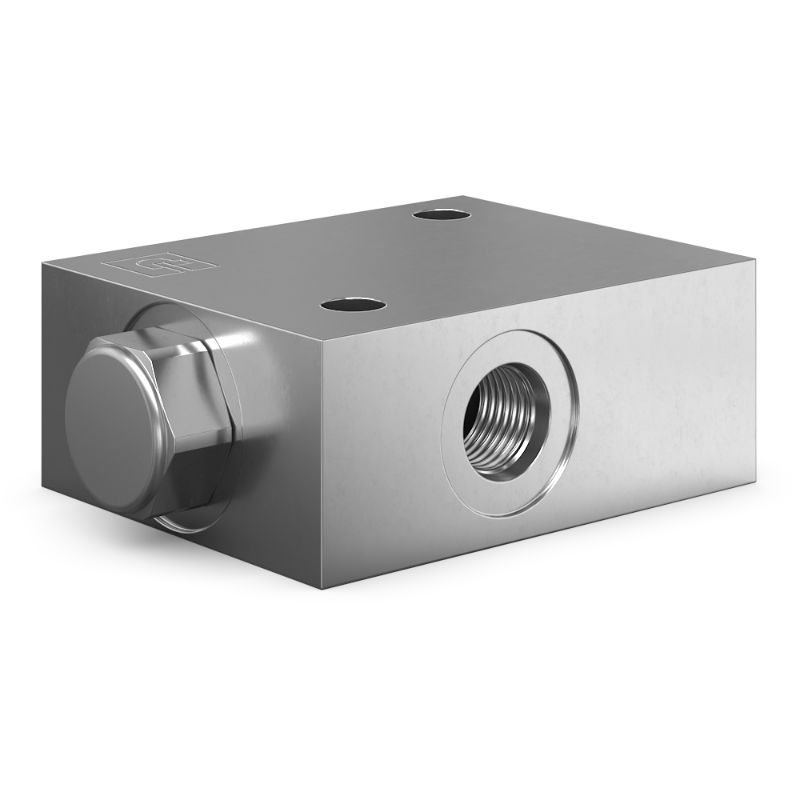

Parker CSP081A100-A6T - Pilot Piston Style Pilot Operated Check Valves

Parker’s P.O. check valve’s allow flows up to 226 lpm (60 gpm) and pressure up to 350 bar (5,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CSP081A100-A6T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	200	Operating Temperature	-35 to 200
Weight	1.04	Configuration	Pilot Piston Style
Flow Direction	Check Flow Cylinder to Valve	Sealed Pilot Included	Yes
Function	Single Pilot Operated	Connection Size	-6
Maximum Inlet Pressure Rating	3000	Mounting Type	Line Mounted
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Seal Material	D-Ring (Standard)
Actuation Type	Pressure Sensing	Cavity Size	C08
Division	Hydraulic Systems Division	Cracking Pressure	100
Body Material	Aluminum	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Flow Rate	10	Pilot Pressure Ratio	4:1
Filter Efficiency Rating	ISO 4406 18/16/13	Connection Type	SAE
Minimum Operating Temperature	-35	Operation Type	Automatic
Maximum Operating Pressure	3000	Division	Hydraulic Valve Systems Division
Leak Rate	Internal (max): 2 Dpm (0.13 cc/min) across Check Valves	Flow Rate	10
Valve Material	Steel (all parts)	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Cracking Pressure	100 PSI, 6.9 BAR	Seal Material	D-Ring (Standard)
Flow Rate	10 GAL/MIN, 38 L/MIN	Sealed Pilot Included	Yes
