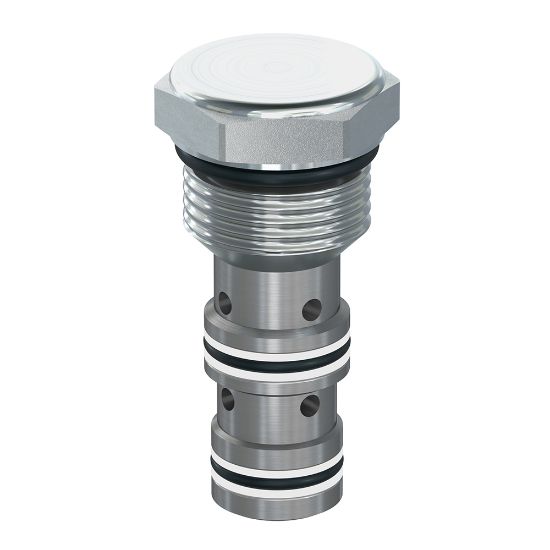

Parker CSH101BN - Cartridge Ball Type Shuttle Valve

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CSH101BN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Standard Flow Rate Setting	n/a	Minimum Operating Temperature	-30
Seal Material	Nitrile	Actuation Type	Pressure Sensing
Operating Temperature	-30 to 250	Body Material	n/a
Weight	0.3	Cavity Size	C10-3
Division	Hydraulic Valve Systems Division	Operation Type	Automatic
Filter Efficiency Rating	ISO 4406 18/16/13	Division	Hydraulic Valve Systems Division
Maximum Inlet Pressure Rating	5000	Leak Rate	10 drops/min @ 5000 Psi (350 bar)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Steel (all parts)	Maximum Flow Rate	10
Maximum Operating Temperature	250	Function	Diverter
Configuration	3-Way Ball Type	Installation Torque	48
Flow Rate	10	Maximum Operating Pressure	5000
Seal Material	D-Ring	Flow Rate	10 GAL/MIN, 38 L/MIN
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
