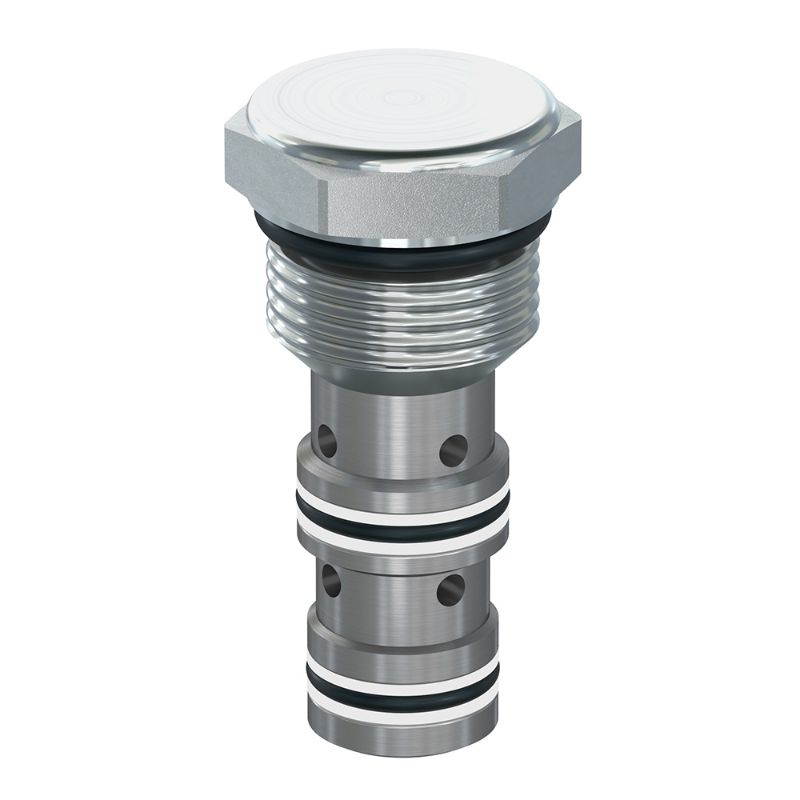

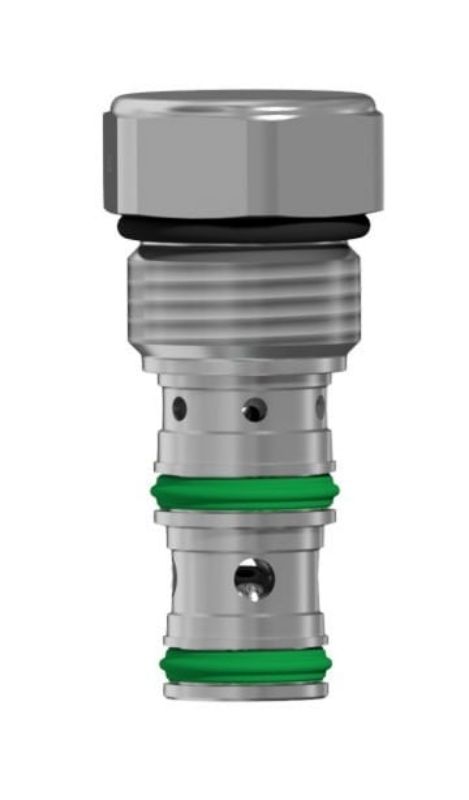

Parker CSH101B - Cartridge Ball Type Shuttle Valve

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

AFP Availability:	Quote Required
Partner Available:	18 In Stock

Brand Parker

Part No. CSH101B

$49.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	38 L/min
Minimum Operating Temperature	-34 °C	Installation Torque	65 Nm
Operating Temperature	-34 to 121 °C	Division	Hydraulic Systems Division
Maximum Inlet Pressure Rating	5000 psi	Maximum Operating Pressure	5000 psi
Filter Efficiency Rating	ISO 4406 18/16/13	Valve Material	Hardened Steel
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Seal Material	Nitrile
Actuation Type	Pressure Sensing	Weight	0.14 kg
For Fluid Type	Mineral-based Hydraulic Fluids	Cavity Size	C10-3
Maximum Operating Temperature	250 °F	Function	Diverter
Configuration	3-Way Ball Type	Standard Flow Rate Setting	n/a
Maximum Flow Rate	10 Gal/min	Leak Rate	10
Operation Type	Automatic	Body Material	n/a
Seal Material	Nitrile	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	10 GAL/MIN, 38 L/MIN
