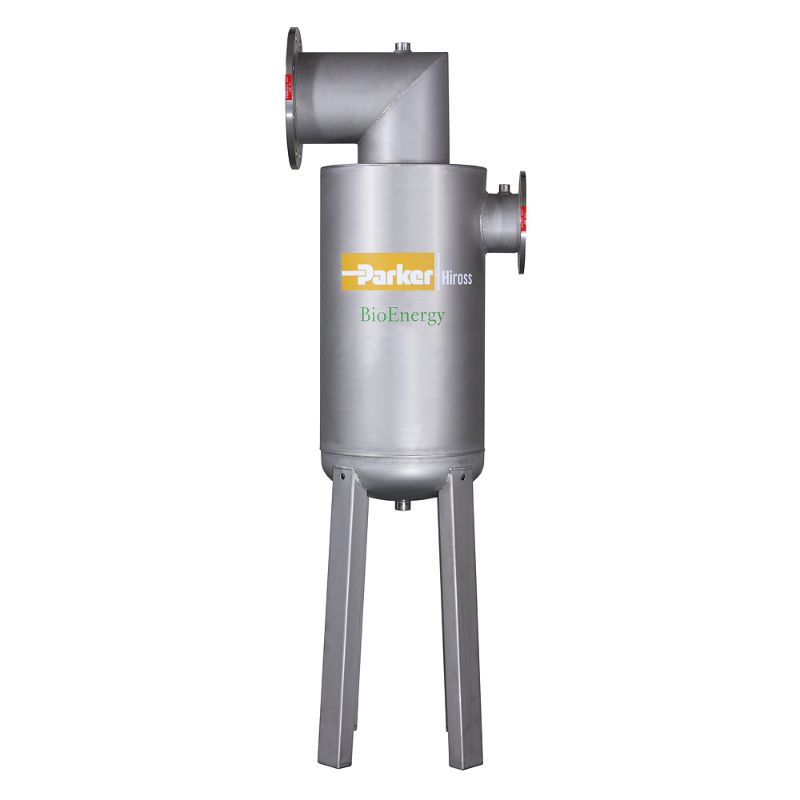

Parker CSB105-316 - Hypersep BioEnergy Water Separator

Energy efficient stainless steel water separators for the treatment of biogas from anaerobic digesters and landfills.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CSB105-316

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	14.39 inch	Weight	14 kg
Connection Type	Flanged DIN EN 1092-1	Outlet Port Size	DN50
Maximum Flow Rate	61.8 CFM	Brand	Hiross
Height	21.08 inch	Division	Gas Separation and Filtration Division EMEA
Maximum Operating Pressure	7.25 psig	Specifications Met	not necessary due to low pressure
Application	Water separation from biogas	Maximum Operating Temperature	212 °F
Minimum Operating Temperature	14 °F	Port Connection Inlet	DN80
Materials of Construction	Stainless steel AISI316	Maximum Flow Rate (m³/h)	105
