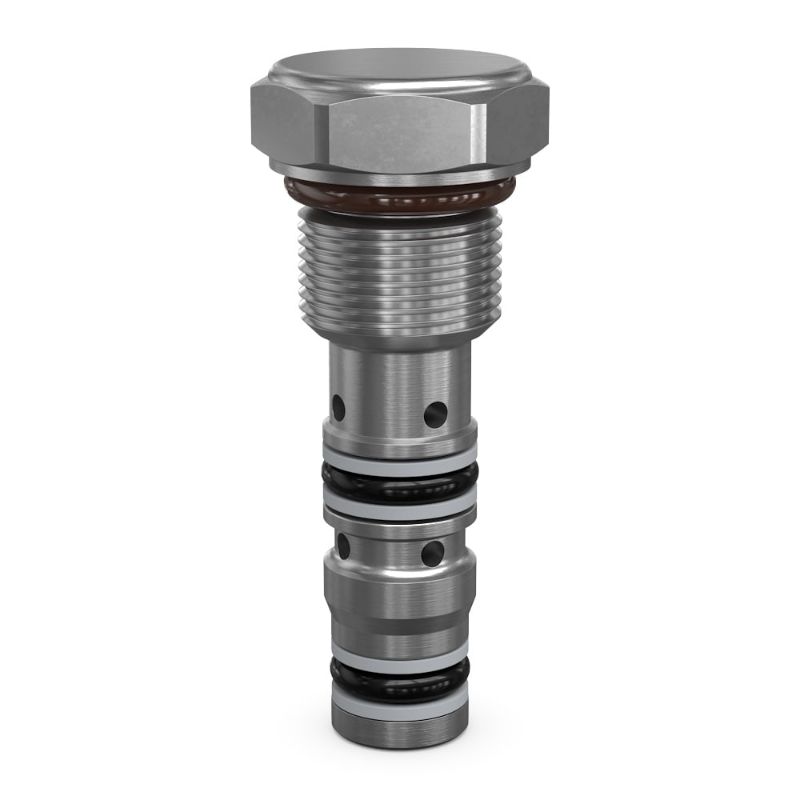

Parker CS041B - Cartridge Ball Type Shuttle Valve

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CS041B

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Material	Steel (all parts)
Filter Efficiency Rating	ISO 4406 18/16/13	Flow Rate	1
For Fluid Type	Mineral-based Hydraulic Fluids	Function	Diverter
Leak Rate	5 drops/min @ 3000 Psi (207 bar)	Installation Torque	6
Seal Material	Nitrile	Minimum Operating Temperature	-30
Maximum Flow Rate	1	Actuation Type	Pressure Sensing
Division	Hydraulic Systems Division	Maximum Operating Temperature	250
Configuration	3-Way Ball Type	Cavity Size	C04-3
Body Material	n/a	Operating Temperature	-30 to 250
Maximum Operating Pressure	3000	Operation Type	Automatic
Maximum Inlet Pressure Rating	3000	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Standard Flow Rate Setting	n/a	Weight	0.04
Seal Material	Nitrile	Flow Rate	1 GAL/MIN, 3.8 L/MIN
Maximum Inlet Pressure Rating	3000 PSI, 207 BAR
