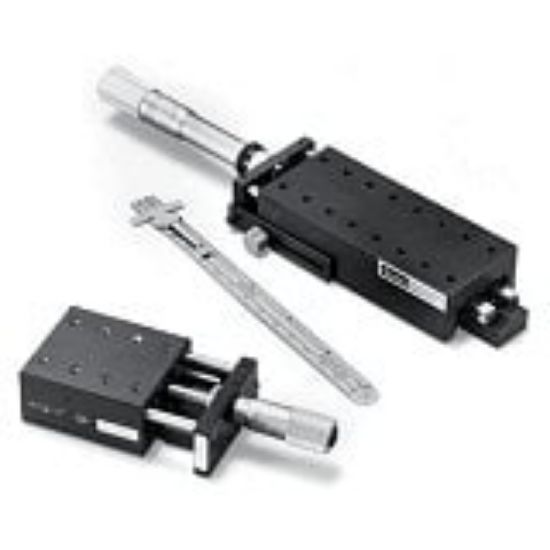

Parker CR4803 - Manual Driven, Cross Roller Bearing Guided, Standard Linear Positioning Stages - CR4000 Series

CR4000-series crossed roller bearing guided manual linear positioners have an integral drive mechanism and offer travels up to 2", payloads up to 251 lbs, plus exceptional smoothness, extremely low friction and a very good straightness/flatness accuracy

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CR4803

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Number of Axes	1	Maximum Travel	0.75 inch
Mounting Option	Center Drive	Division	Electronic Motion and Controls Division
Product Series	CR4000 Series	Load Capacity	150 to 499 lb
Width	2.62 inch	Drive Train Type	Fine Screw
Product Type	Linear Stage	Bearing Type	Cross Roller
Travel (mm)	(imperial)	Type	English Model / Center Drive
Travel (inch)	0.75	Drive Mechanism	Fine Screw
Payload (lbs)	252	Axis Count	1
