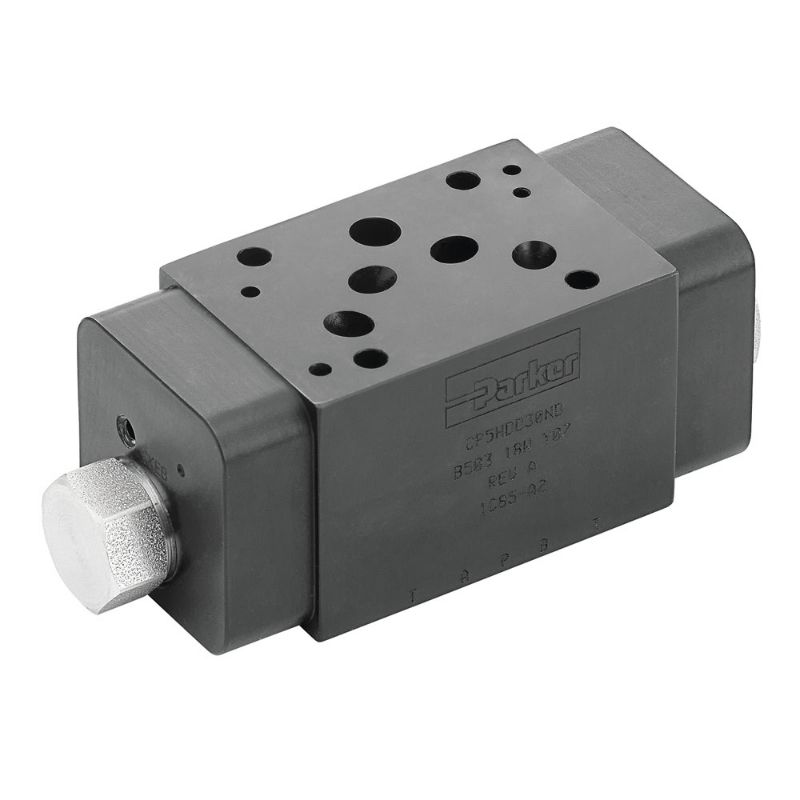

Parker CP08BB30ND - Pilot Operated Check Sandwich Valve – CP Series

Parker’s CP series pilot operated check valves are designed for maximum flow rates.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CP08BB30ND

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cracking Pressure	3	Minimum Operating Temperature	-4
Port Connection	B Port Blocked	Seal Material	Nitrile
Product Style	Pilot Operated Check	Division	Hydraulic Valve Systems Division
Allowable Circuit Leakage	1 DPM	Maximum Flow Rate	120
Body Material	Ductile Iron	Weight	29
Media	Oil	Maximum Operating Temperature	122
Actuation Type	Hydraulic Pressure	Ratio	3:01
Mounting Type	Subplate	Maximum Operating Pressure	5000
Maximum Operating Pressure	5000 PSI	Size	NFPA D08; CETOP 8; NG25
