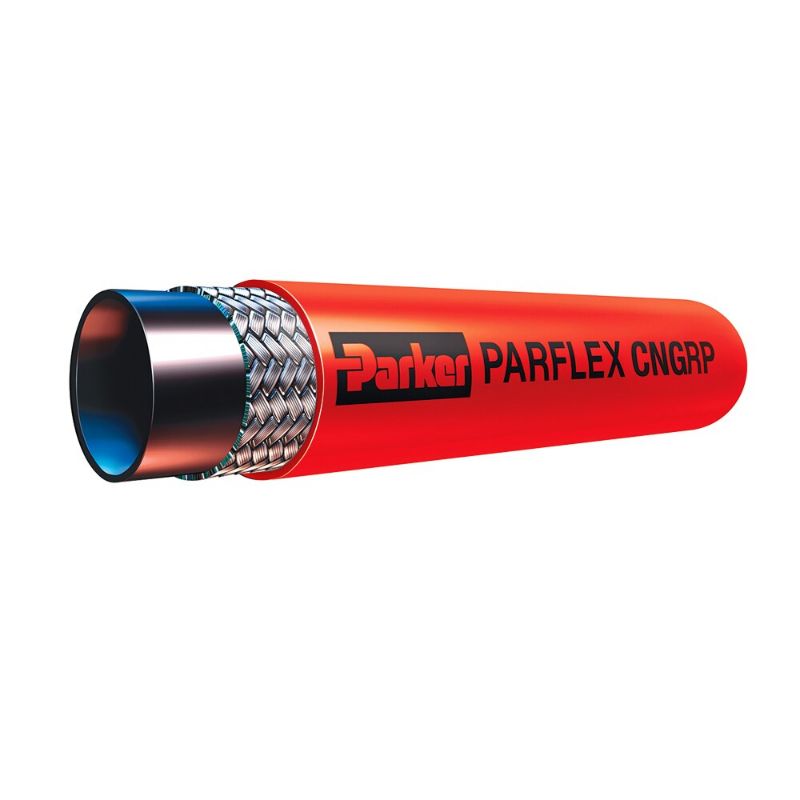

Parker CNGRP-10 - Compressed Natural Gas Hose - Regulated Pressure - CNGRP

Parflex CNGRP hose is the only fully CSA listed fluid conveyance system that is flexible. The flexibility of the product provides reduced warranty costs versus stainless steel tubing in vibration/movement applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CNGRP-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Bend Radius	4	Maximum Operating Temperature	121
Application	Natural Gas Transfer (on vehicle)	Compatible Fitting	91N Series
Inside Diameter	1/2	Hose Reinforcement Material	Thermoplastic Vulcanizates (TPV)
Media	Natural Gas	Weight	0.39
Minimum Operating Temperature	-40	Specifications Met	ANSI NGV 3.1, CSA 12.3
Outside Diameter	0.890	Cover Material	Stainless Steel
Maximum Operating Pressure	500	Size	-10
Hose Inner Tube Material	Polyamide (PA)	Design Factor	4:1
Division	Parflex Division	Hose I.D. (inch)	1/2
