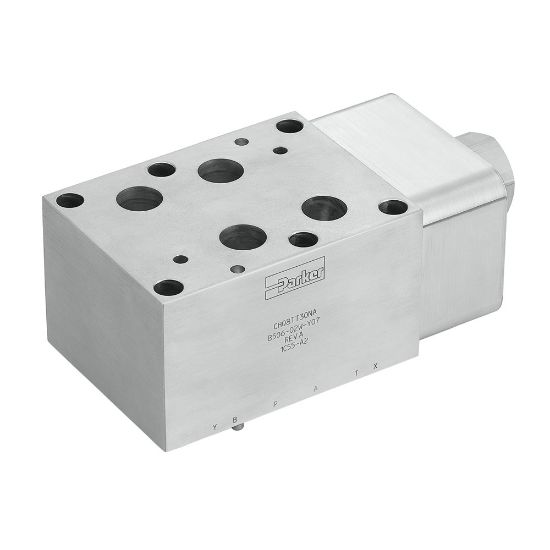

Parker CH07TT30ND - Check Sandwich Valve – CH Series

Parker’s CH series check valves provide free flow in one direction and blocked flow in the reverse direction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CH07TT30ND

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Oil	Minimum Operating Temperature	-40
Division	Hydraulic Valve Systems Division	Maximum Operating Pressure	5000
Weight	13.7	Mounting Type	Subplate
Maximum Flow Rate	80	Product Style	Check Valve
Maximum Operating Temperature	200	Actuation Type	Hydraulic Pressure
Allowable Circuit Leakage	<1 dpm	Body Material	Ductile Iron
Seal Material	Nitrile	Size	NFPA D07; CETOP 7; NG16
Valve Body Material	Ductile Iron	Port Connection	T Port Blocked
