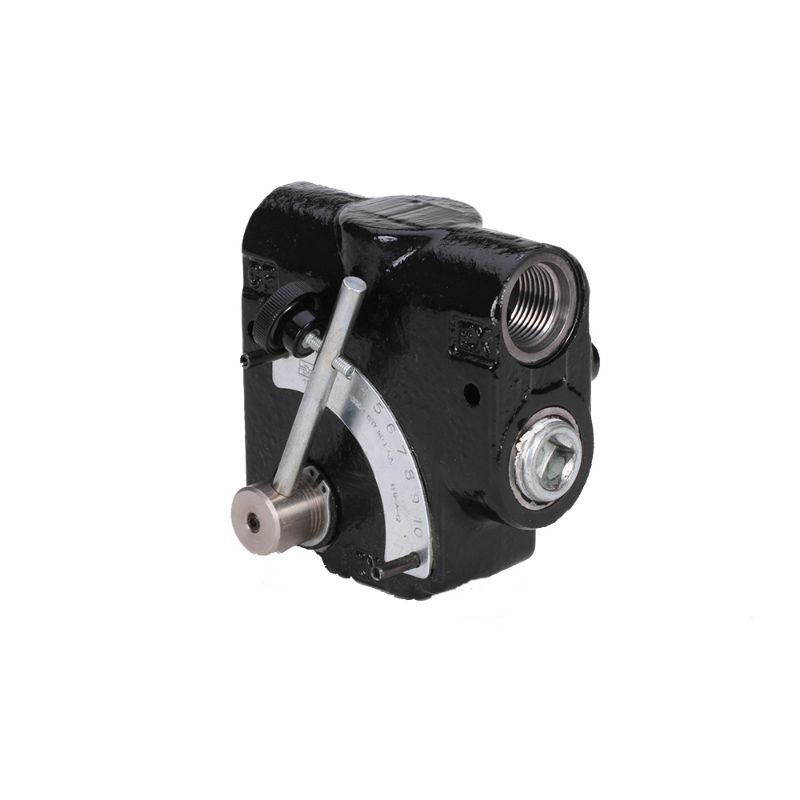

Parker CFQ-A-12 - Priority Type Flow Control – CFQ Series

Parker’s CFQ Adjustable Flow Divider Valve is designed for providing a Controlled Flow source through one of three optional flow ranges from 0-30 GPM.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CFQ-A-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Style	Priority Type Flow Control	Minimum Operating Temperature	-20 °F
Actuation Type	Hydraulic Pressure	Body Material	High Tensile Gray Iron
Weight	7.8 lb	Seal Material	Nitrile
Maximum Operating Pressure	3000 psi	Maximum Flow Rate	35 Gal/min
Division	Hydraulic Valve Systems Division	Maximum Operating Temperature	180 °F
Pressure Relief Valve	No Relief	Port Size	1 1/16"-14 UN-2B
