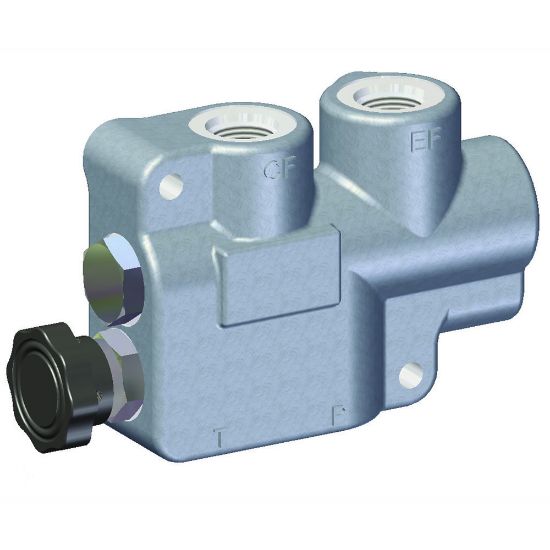

Parker CFDA-75 - Pressure Compensated By-Pass Type Flow Control Valve - CFDA Series

Parker’s CFDA Adjustable Flow Divider is designed for providing a 0-15 GPM controlled flow source. It is typically applied for applications where frequent adjustments to the controlled flow rate are required.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CFDA-75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic Valve Systems Division	Connection Size	3/4 inch
Body Material	High Strength Cast Iron	Minimum Operating Temperature	-40 °F
Flow Rate	Adjustable	Seal Material	Nitrile
Actuation Type	Manual	Maximum Flow Rate	n/a
Configuration	Inline	Maximum Operating Pressure	2500 psi
Function	Flow Control	Weight	8 lb
Maximum Operating Temperature	200 °F	Connection Type	NPT
Maximum Operating Pressure	2500	Port Size	3/4"-14 NPT

Product resources

Literature and Reference Materials
