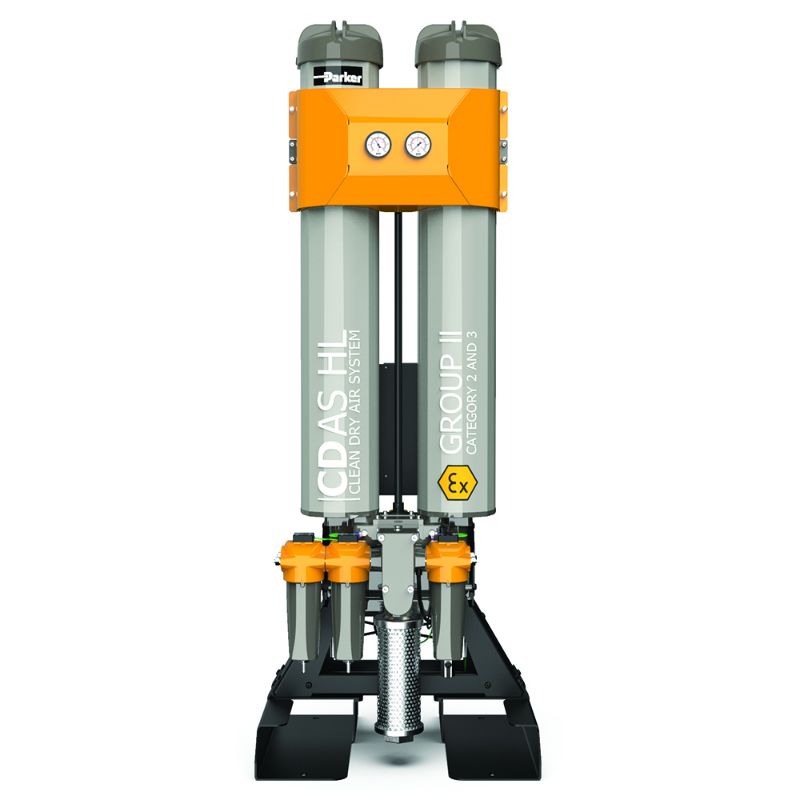

Parker CDASHL050-40N16PP - CDAS HL Medium Flow Heatless Compressed Air Dryer System

Medium flow compressed air treatment systems providing pressure dew points of -70°C, -40°C or -20°C at flow rates up to 300 m³/hr @ 7 barg. Suitable for all industrial compressed air applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CDASHL050-40N16PP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Weight	76	Noise Level	< 75
Specifications Met	PED 2014/68/EU Fluid Group II	Application	Compressed Air Applications
Product Type	Compressed Air Dryer	Ambient Temperature	55.0 °C Maximum
Ingress Protection Rating	IP55 Indoor Use Only	Depth	490.0
Width	559.0	Height	1133.0
Product Series	CDAS	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Product Style	Heatless	Operating Pressure	4 to 16
Operating Temperature	5 to 50	Connection Type	NPT
Port Size	½ inch	Flow Rate	55 m³/h @ 7 barg (32 cfm @ 102 psig)
ISO Grade	Class 2.2.2 or Class 2.3.2	Pressure Dew Point	-40°C (-40°F) or -20°C (-4°F)
ATEX Specifications Met	Yes	Electrical Requirements	None
