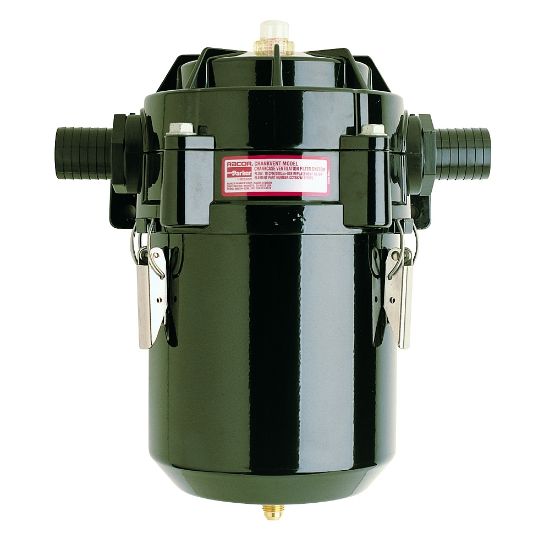

Parker CCV6000-10R - Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series

Racor Crankcase Ventilation Systems prevent fouling of critical engine components, such as turbochargers and after-coolers, by removing oil contamination from engine bypass gases. Available in open (CV) and closed (CCV) configurations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CCV6000-10R

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
For Fluid Type	Engine Blowby Gas	Depth	7.3 inch
Drain	Drain Kit: Hose, Check Valve, (2) Swivel Fitting	Width	8.6 inch
Height	30.5 cm	Heat Type	100W Optional: CCV55462 (120VAC) CCV55462-12 (12VDC) CCV55462-24 (24VDC)
Port Size	1-5/8 inch SAE 12	Mounting Type	Integrated Head Bracket
Indicator Type	Element Bypass/Change Indicator	Interface Type	Remote By-pass Indicator Kit CCV55615-01
Product Series	Cartridge Crankcase Ventilation	Compatible Element	High: CCV55274-08, Ultra: CCV55274-10
Pressure Regulator Type	Integral Crankcase Pressure Regulator	Materials of Construction	Die cast head, glass filled nylon and black powder epoxy-coated aluminium bowl
Function	Bypass Assembly	Inlet Location	Right
Maximum Output	800 HP / 600 kW	Maximum Flow Rate	20 cfm / 0.57 m3/m
Filtration Ratings	Ultra	Type/Configuration	Closed System
