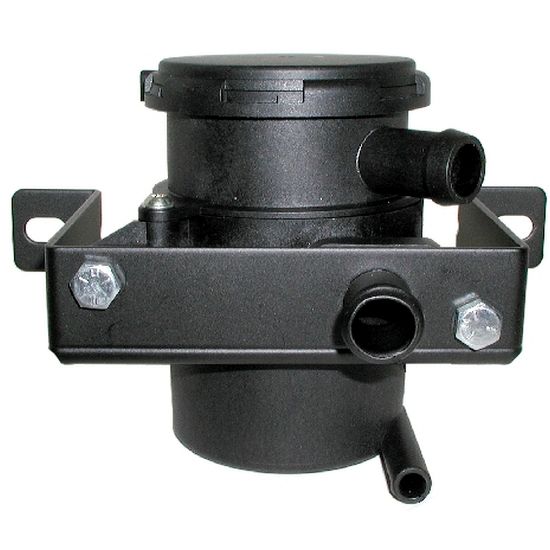

Parker CCV1500-04 - Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series

Racor Crankcase Ventilation Systems prevent fouling of critical engine components, such as turbochargers and after-coolers, by removing oil contamination from engine bypass gases. Available in open (CV) and closed (CCV) configurations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CCV1500-04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Indicator Type	none	Depth	5 inch
For Fluid Type	Engine Blowby Gas	Drain	Drain Hose, Check Valve
Width	20.3 cm	Height	12.7 cm
Heat Type	Not Available	Port Size	3/4 inch Hose Bead
Mounting Type	Steel Strap Clamp	Interface Type	N/A
Product Series	CCV1500	Compatible Element	Low: CCV55365-04
Pressure Regulator Type	Vacuum Limiting Valve	Materials of Construction	Glass filled nylon and black powder epoxy-coated steel bracket
Function	Intermittent Duty	Inlet Location	N/A
Maximum Output	40 HP / 30 kW	Maximum Flow Rate	1 cfm / 0.03 m3/m
Filtration Ratings	Low	Type/Configuration	Closed System
