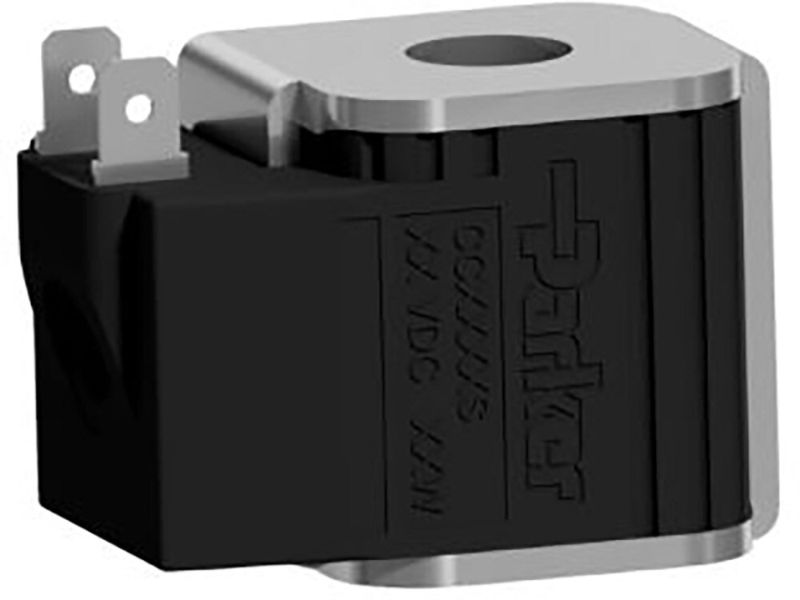

Parker CCS012S - 1/2" Super Coil

Parker's broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CCS012S

$38.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	n/a
Seal Material	n/a	Weight	0.44 kg
Maximum Operating Pressure	n/a	Flow Rate	n/a
For Fluid Type	n/a	Function	1/2" Super Coil
Resistance	10.43 Ω	Maximum Operating Temperature	392 °F
Division	Hydraulic Cartridge Systems Division	Coil Type	Standard
Division	Hydraulic Systems Division	Duty Cycle	Continuous @ 100% Voltage
Current	1.15 A	Minimum Operating Temperature	-40 °F
Body Material	n/a	Maximum Flow Rate	n/a
Voltage	12 VDC	Connection Type	Dual Spade
Diode	No	Power Consumption	14 - Low Watt
