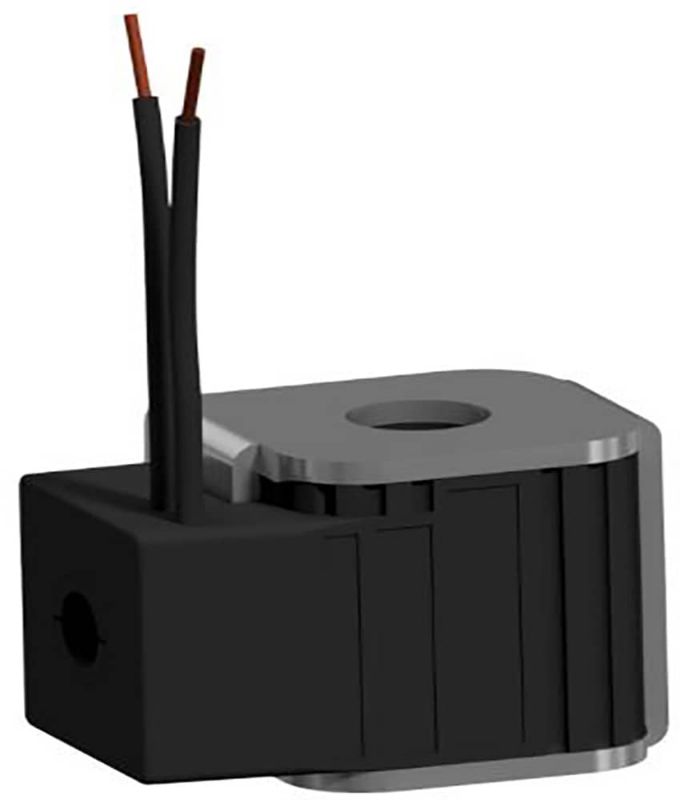

Parker CCP024L - 1/2" Super Coil

Parker's broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

AFP Availability:	Quote Required
Partner Available:	35 In Stock

Brand Parker

Part No. CCP024L

$42.82/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	n/a
Division	Hydraulic Cartridge Systems Division	Function	1/2" Super Coil
Maximum Operating Temperature	392 °F	Coil Type	Puissant
Current	0.79 A	Flow Rate	n/a
Division	Hydraulic Systems Division	Body Material	n/a
Maximum Flow Rate	n/a	Minimum Operating Temperature	-40 °F
Duty Cycle	Continuous @ 100% Voltage	Resistance	30.3 Ω
Weight	0.44 kg	Maximum Operating Pressure	n/a
Seal Material	n/a	Actuation Type	n/a
Voltage	24 VDC	Connection Type	Dual Lead Wire
Diode	No	Power Consumption	19 - High Watt

Product resources

Literature and Reference Materials
