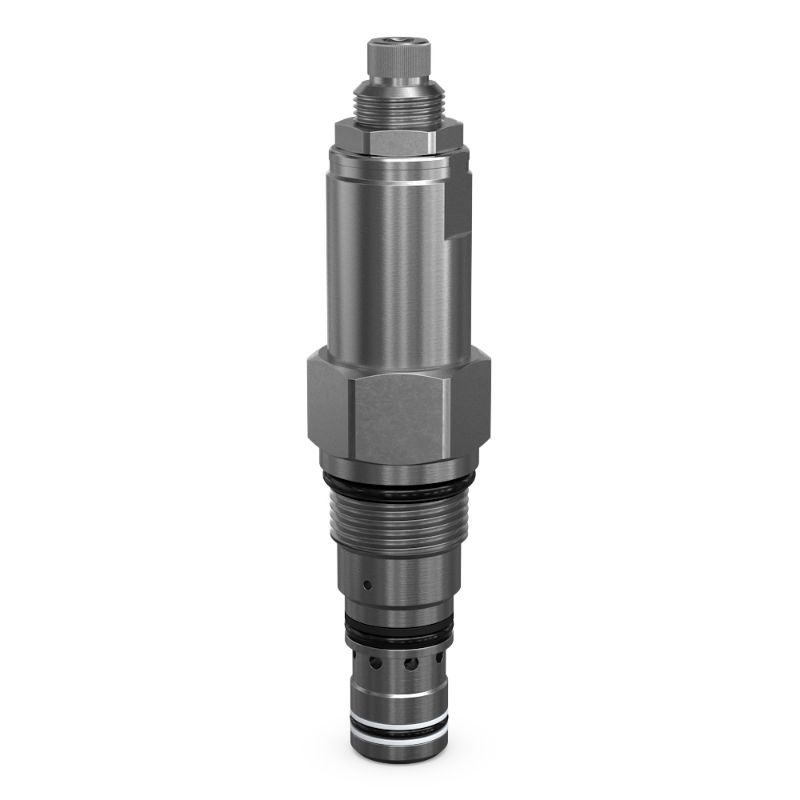

Parker CB101BS10V - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

AFP Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. CB101BS10V

$157.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	400 °F
Pressure Control Range	20.7-90 bar	Cavity Size	C10-3
For Fluid Type	Mineral-based Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
Pressure Control Sensitivity	7.9 per turn bar	Division	Hydraulic Systems Division
Operating Temperature	-15° to +400° °F	Pilot Location	External
Maximum Flow Rate	45 L/min	Minimum Operating Temperature	-26 °C
Body Material	n/a	Mounting Type	Threaded Cartridge Valve
Port Size	n/a	Leak Rate	5
Holding Pressure	69 bar	Seal Material	Fluorocarbon
Port Thread Size	N/A	Actuation Type	Pilot Operated
Flow Rate	45 L/min	Installation Torque	22 Nm
Function	Counterbalance Valve	Pilot Pressure Ratio	4.5:1
Flow Direction	Valve port 2	Weight	0.23 kg
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	5500 psi
Adjustment Mechanism	Screw	Filter Efficiency Rating	SAE Class 4
Valve Material	Hardened Steel	Maximum Operating Pressure	350 bar
Seal Material	Fluorocarbon	Port Size	n/a
Adjustment Mechanism	Screw	Mounting Type	Threaded Cartridge Valve
Maximum Flow Rate	12 GAL/MIN, 45 L/MIN	Holding Pressure	1000 PSI, 69 BAR
Pilot Pressure Ratio	4.5:1	Pressure Control Range	500-1500 PSI, 34.5-103.4 BAR
