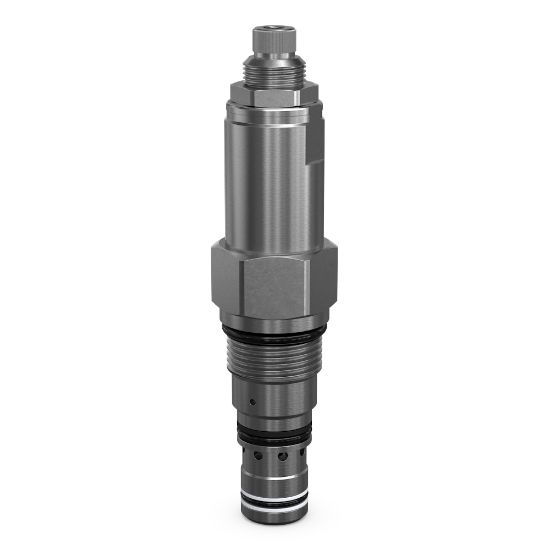

Parker CB101AF10 - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CB101AF10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Actuation Type	Pilot Operated
Port Size	n/a	Body Material	n/a
Minimum Operating Temperature	-30	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Pilot Location	External
Valve Material	Steel (all parts)	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.5
Maximum Operating Temperature	250	Operating Temperature	-30 to 250
Pressure Control Sensitivity	n/a	Installation Torque	22
Pressure Control Range	n/a	Cavity Size	C10-3
Flow Rate	12	Maximum Flow Rate	12
Function	Counterbalance Valve	Mounting Type	Threaded Cartridge Valve
Pilot Pressure Ratio	3:1	Leak Rate	5 drops/min @ 80% of Setting
Flow Direction	Cylinder port 1	Holding Pressure	1000
Adjustment Mechanism	Fixed	Maximum Inlet Pressure Rating	5500
Seal Material	Nitrile	Port Size	n/a
Mounting Type	Threaded Cartridge Valve	Maximum Flow Rate	12 GAL/MIN, 45 L/MIN
Holding Pressure	1000 PSI, 69 BAR	Adjustment Mechanism	Fixed
Pilot Pressure Ratio	3:1	Pressure Control Range	500-1500 PSI, 34.5-103.4 BAR
