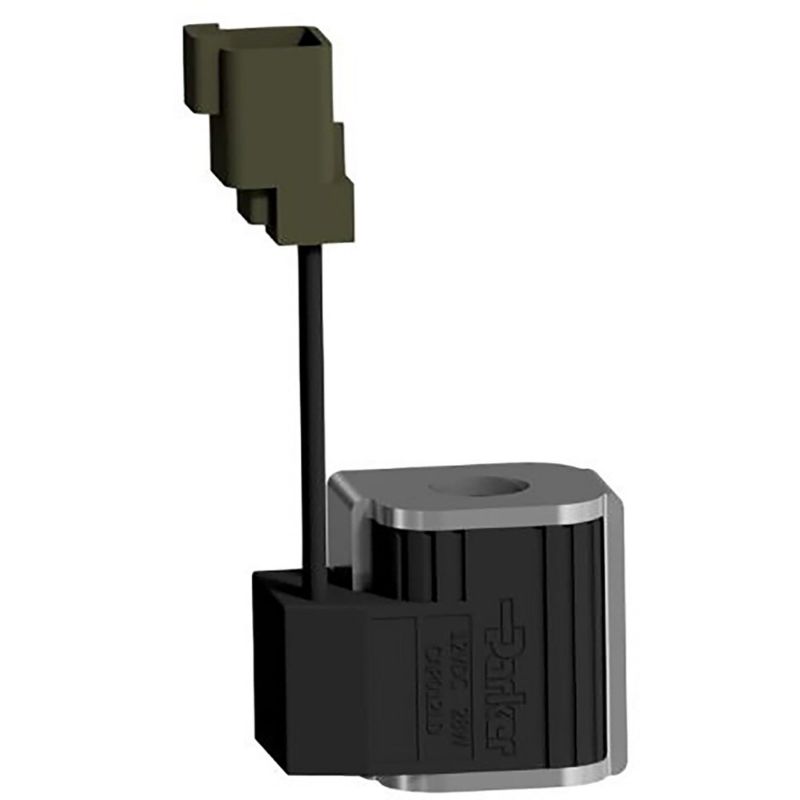

Parker CAP024LD - 5/8" Super Coil

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CAP024LD

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	n/a
Flow Rate	n/a	Coil Type	Puissant
Resistance	20.6 Ω	Maximum Operating Temperature	200 °C
Minimum Operating Temperature	-40 °C	Current	1.17 A
Actuation Type	n/a	Division	Hydraulic Cartridge Systems Division
Function	5/8" Super Coil	Division	Hydraulic Systems Division
Maximum Flow Rate	n/a	Body Material	n/a
For Fluid Type	n/a	Weight	0.64 lb
Duty Cycle	Continuous @ 100% Voltage	Maximum Operating Pressure	n/a
Power Consumption	28 - High Watt	Voltage	24 VDC
Diode	No	Connection Type	Dual Lead Wire w/Deutsch
