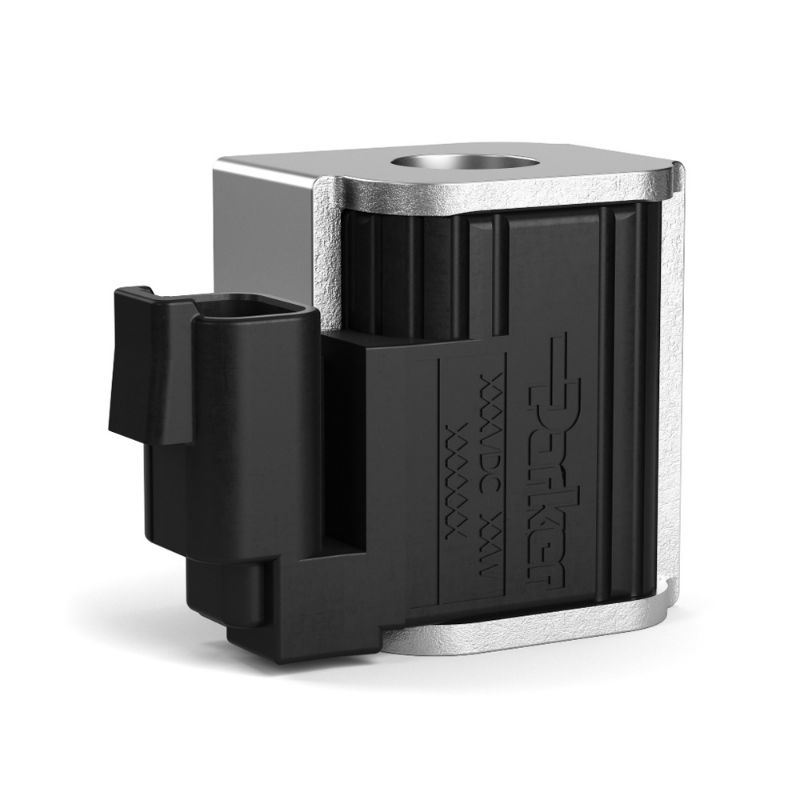

Parker CAP024A - 5/8" Super Coil

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CAP024A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Duty Cycle	Continuous @ 100% Voltage	Weight	0.64 lb
Division	Hydraulic Valve Systems Division	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	n/a	Resistance	20.6 Ω
Coil Type	Puissant	For Fluid Type	n/a
Flow Rate	n/a	Seal Material	n/a
Function	5/8" Super Coil	Division	Hydraulic Systems Division
Current	1.17 A	Actuation Type	n/a
Maximum Flow Rate	n/a	Maximum Operating Temperature	392 °F
Body Material	n/a	Voltage	24 VDC
Diode	No	Connection Type	Amp Jr
Power Consumption	28 - High Watt
