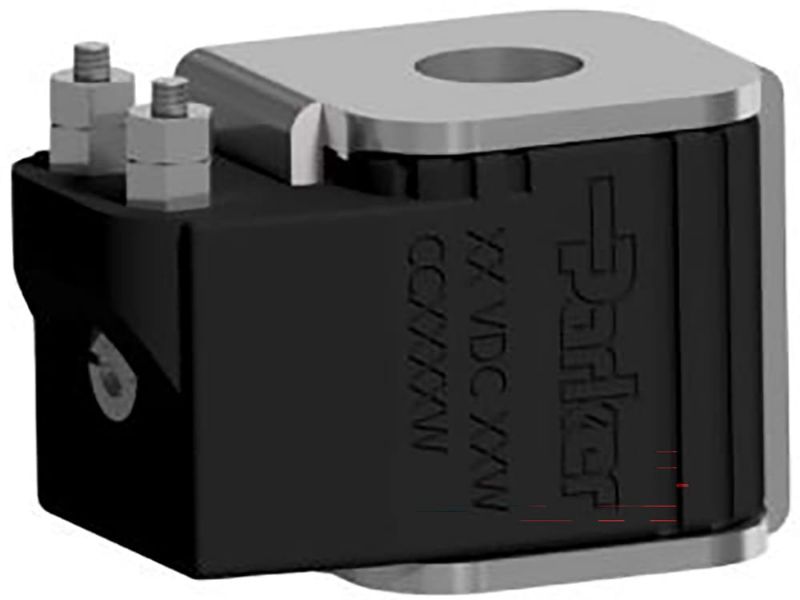

Parker CAP012WE - 5/8" Super Coil

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CAP012WE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Coil Type	Puissant	For Fluid Type	n/a
Current	2.33 A	Duty Cycle	Continuous @ 100% Voltage
Seal Material	n/a	Weight	0.29 kg
Flow Rate	n/a	Body Material	n/a
Maximum Operating Temperature	392 °F	Division	Hydraulic Cartridge Systems Division
Resistance	5.14 Ω	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	n/a	Maximum Flow Rate	n/a
Actuation Type	n/a	Function	5/8" Super Coil
Division	Hydraulic Systems Division	Connection Type	Dual Screw
Diode	Yes	Voltage	12 VDC
Power Consumption	28 - High Watt
