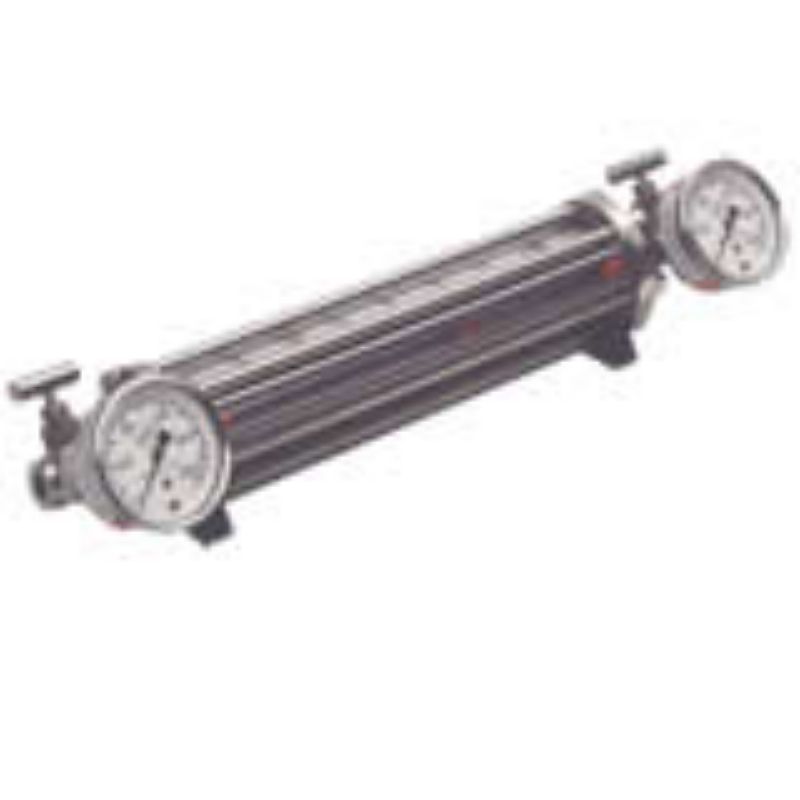

Parker CA1G50-18F - Sample Cylinders, Ultra-Seal Constant Pressure Series

Note: This product is no longer available - please contact us for further information

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CA1G50-18F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Stem Seal Material	PTFE Pressure-Core®	Seat Material	Acetal Resin (STD)
Pressure Gauge Type	2,000 PSI Liquid Filled Gauges Included	Body Type	Basic Cylinder
Switch Option	N/A	Piston Type	Liquid piston with Jet-Flo liquid mixer
Burst Pressure	Optional 316 SS 1800 PSI Burst Port Disc	Valve Configuration	1/4" M x F Straight Valve Both Ends
Bleed Outlet Location	N/A	Division	Instrumentation Products Division
Valve Material	316 SS	Cylinder Type	500 cc Capacity
Piston Types	Liquid piston with Jet-Flo liquid mixer	Burst Pressure	Optional 316 SS 1800 PSI Burst Port Disc
Cylinder Type	500 cc Capacity	Switch Type	N/A
Body Type	Basic Cylinder

Product resources

Literature and Reference Materials

Sample Cylinders - PGI-CYL (PDF)
