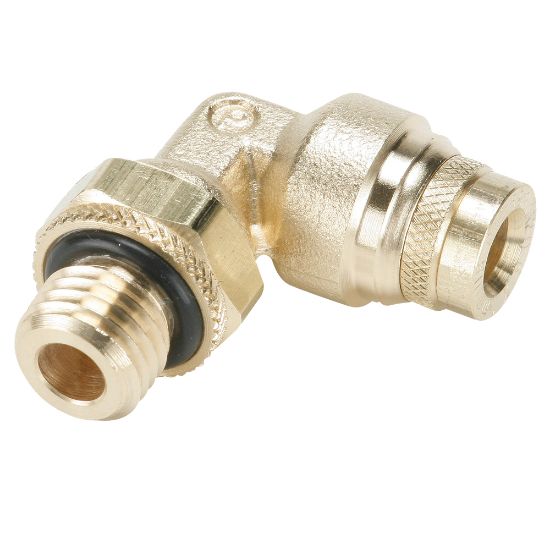

Parker C8UPMTB6-M16 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. C8UPMTB6-M16

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	-40 °C
Shape	Straight	Technology	Fluid & Gas Handling
Division	Fluid System Connectors Division	Maximum Operating Pressure	250 psi
Maximum Operating Temperature	93 °C	Connection 1 Size	n/a
Connection 1 Type	Push-to-Connect	Connection 2 Type	Metric
Connection 3 Size	N/A	Configuration	Tube to Pipe
Seal Material	Buna N (O-Ring)	Application	Air Brake Systems
Tube Material	Nylon Tubing SAE J844 Type A & B	Connection 2 Size	M16x1.5 mm
Specifications Met	DIN 74324	Materials of Construction	Brass (Collet)
Connection 1 Type	Push-to-Connect	Product Style	Tube to Pipe
Connection 2 Size	M16x1.5	Connection 1 Size	16 mm
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 2 Type	Male M16 Thread	Shape	Rigid 90° Elbow
