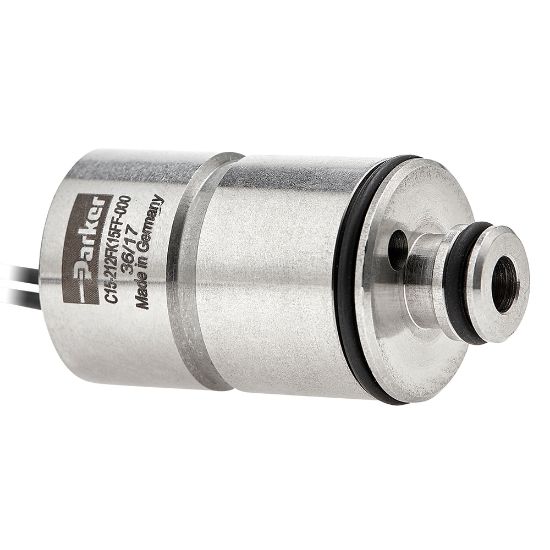

Parker C15-224FK05FF-000 - C15 Miniature Cartridge Liquid Valve

The Parker C15 is the mid-size diameter offered in the C Series cartridge style valves at 15 mm. Available in 2 and 3-way normally closed configurations. This fast and reliable valve is ideal for life science applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. C15-224FK05FF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Electrical Connection	3.2" (80 mm) Flying Leads	Control Method	Voltage
Mounting Type	Manifold	Weight	0.78
Division	Precision Fluidics Division	Maximum Operating Temperature	122
Actuation Type	Solenoid	Industry Application	Wash
Orifice Size	0.5	Configuration	n/a
Maximum Flow Rate	400	Minimum Operating Temperature	32
Body & Stem Base Material	Stainless Steel Series 300 and 400	Cycles per Lifetime	500 Million
Port Connection	Cartridge Seal	Power Consumption	1.1 W Typical
Height	1.142	Flow Rate	400
Function	2-Way	Width	0.591
Operation Type	Electronic	For Fluid Type	Liquids
Maximum Operating Pressure	up to 145	Orifice Size (inch)	0.02
Voltage (VDC)	24	Wetted Materials: Seals (Elastomer)	FKM
Valve Configuration Type	2 Way Normally Closed
