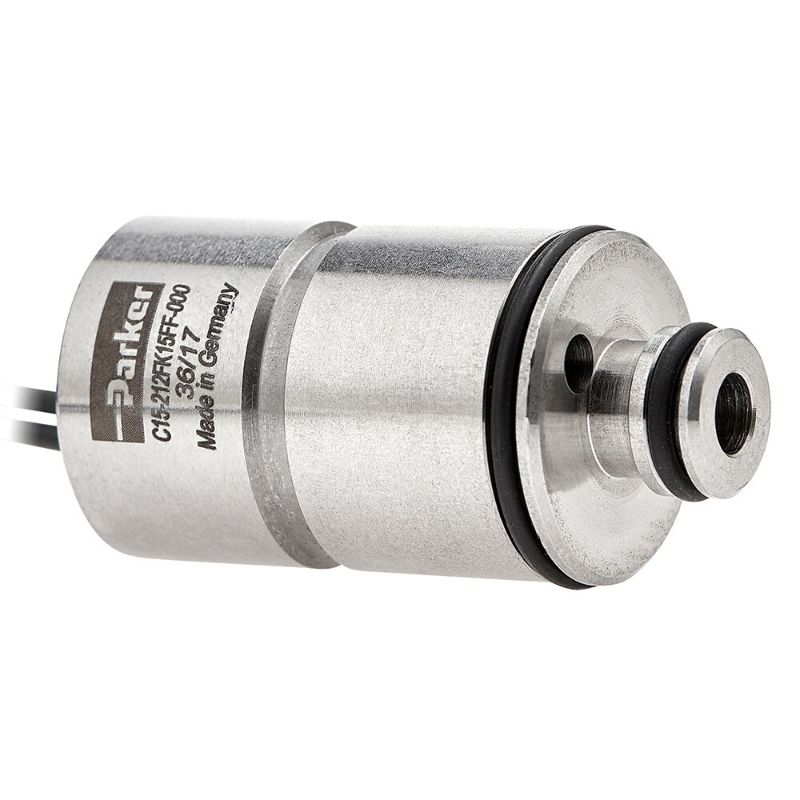

Parker C15-212FK20FF-000 - C15 Miniature Cartridge Solenoid Valve

The C15 is the mid-size diameter in the C Series cartridge style valves at 15 mm. Available in 2 and 3-way normally closed configurations. This fast and reliable valve is ideal for life science applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. C15-212FK20FF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Control Method	Voltage	Power Consumption	1.7 W Typical
Electrical Connection	3.2" (80 mm) Flying Leads	Division	Precision Fluidics Division
Configuration	n/a	Actuation Type	Solenoid
Cycles per Lifetime	500 Million	Port Connection	Cartridge Seal
Body & Stem Base Material	Stainless Steel Series 300 and 400	Mounting Type	Manifold
Operation Type	Electronic	Industry Application	Portable/Hand held environmental monitoring
For Fluid Type	Gases	Minimum Operating Temperature	0 °C
Weight	0.78 oz	Height	29 mm
Flow Rate	44 SLPM	Width	15 mm
Function	Normally Closed (NC)	Maximum Operating Temperature	50 °C
Orifice Size	2 mm	Maximum Operating Pressure	1.5 bar
Maximum Flow Rate	44 SLPM	Voltage (VDC)	12
Orifice Size (inch)	0.079	Wetted Materials: Seals (Elastomer)	FKM
Valve Configuration Type	2 Way Normally Closed
