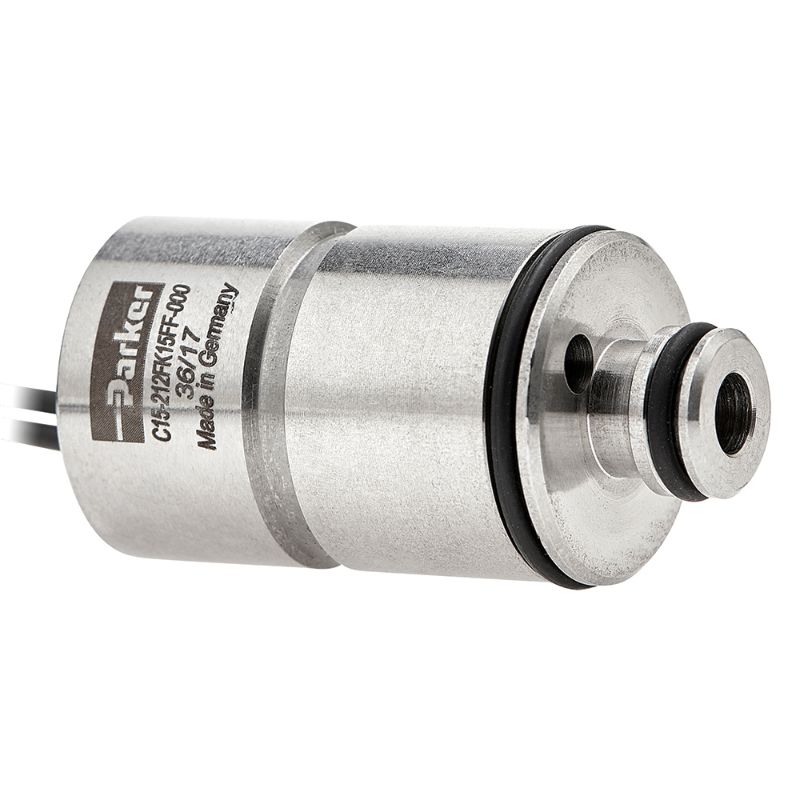

Parker C15-212FK05FF-000 - C15 Miniature Cartridge Solenoid Valve

The C15 is the mid-size diameter in the C Series cartridge style valves at 15 mm. Available in 2 and 3-way normally closed configurations. This fast and reliable valve is ideal for life science applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. C15-212FK05FF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Electrical Connection	3.2" (80 mm) Flying Leads	Division	Precision Fluidics Division
Configuration	n/a	Actuation Type	Solenoid
Cycles per Lifetime	500 Million	Body & Stem Base Material	Stainless Steel Series 300 and 400
Power Consumption	1.1 W Typical	Port Connection	Cartridge Seal
Orifice Size	0.5 mm	Industry Application	Portable/Transport Ventilators
For Fluid Type	Gases	Maximum Flow Rate	18 SLPM
Weight	0.78 oz	Height	1.142 inch
Flow Rate	18 SLPM	Width	15 mm
Maximum Operating Pressure	145 psi	Control Method	Hit and Hold
Wetted Materials: Seals (Elastomer)	FKM	Voltage (VDC)	12
Orifice Size (inch)	0.02	Valve Configuration Type	2 Way Normally Closed
