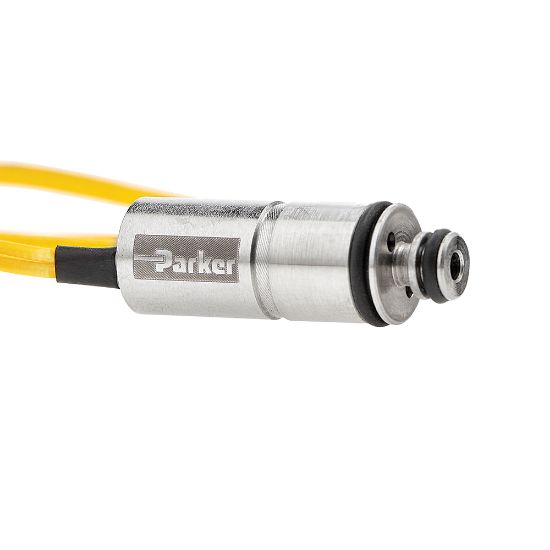

Parker C07-224FK05FF-000 - C7 Miniature Cartridge Liquid Valve

The Parker C7 valve is the smallest cartridge solenoid valve in our portfolio with a small-scale 7 mm diameter. This fast and reliable valve is ideal for life science applications and is available in a 2-way normally closed configurations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. C07-224FK05FF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	FKM	Configuration	n/a
Input Voltage	24 VDC	Function	2-Way
Actuation Type	Solenoid	Weight	0.11 oz
Division	Precision Fluidics Division	Mounting Type	Manifold
Operation Type	Electronic	Height	0.79 inch
Leak Rate	< 0.0116 cm3/min	Response Time	< 10 ms
Port Connection	Cartridge Seal	Cycles per Lifetime	130 Million
Body & Stem Base Material	Stainless Steel Series 300 and 400	Maximum Operating Temperature	122 °F
Electrical Connection	3.2" (80 mm) Flying Leads	Minimum Operating Temperature	0 °C
Width	0.28 inch	Power Consumption	0.85 W Typical
Maximum Operating Pressure	up to 116 psi	Control Method	Hit and Hold
Maximum Flow Rate	260 cm3/min	Industry Application	Flow Control
Orifice Size	0.5 mm	For Fluid Type	Liquids
Flow Rate	up to 260 cm3/min	Voltage (VDC)	24
Orifice 1 Size (inch)	0.02	Valve Configuration Type	2 Way Normally Closed
Wetted Materials: Seals (Elastomer)	FKM	Orifice Size (inch)	0.02
