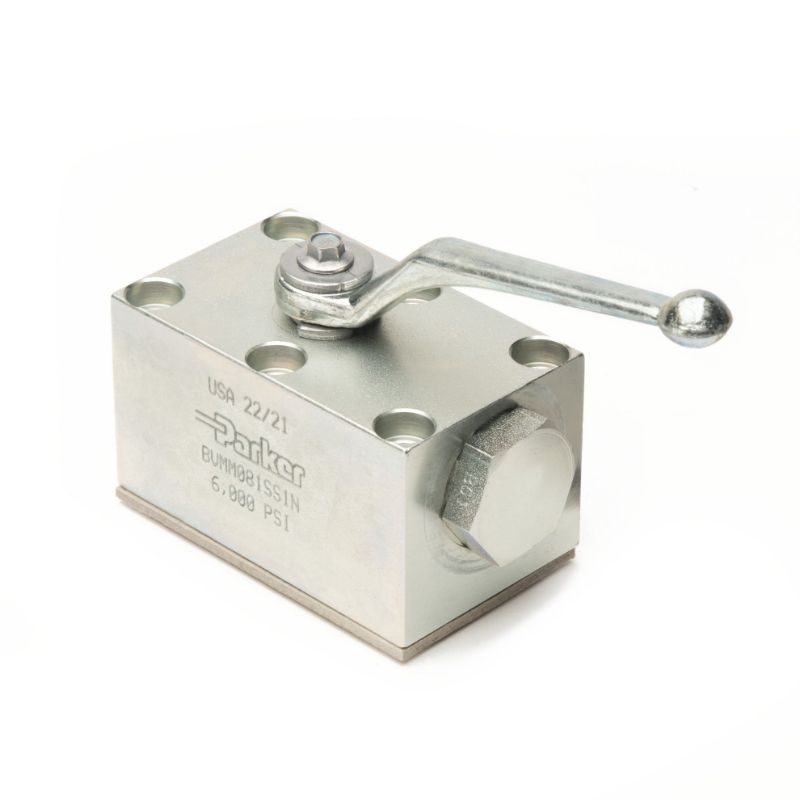

Parker BVMM121SS1N - 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BVMM121SS1N

$714.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Mounting Type	Inline	Options	n/a
Product Type	2-Way Manifold Mount	Minimum Operating Temperature	-20
Weight	11.5	Maximum Operating Pressure	7250
Connection Size	3/4	Actuation Type	Manual
Seal Material	Nitrile	Connection Type	NPT
Maximum Operating Temperature	100	Division	Hydraulic Valve Systems Division
Configuration	Inline	Function	2-Way
Handle Type	Standard Handle	Connection Size	3/4"
Connection Type	NPT	Mounting Type	Inline
Maximum Pressure (psi)	7250 PSI	Product Type	2-Way Manifold Mount

Product resources

Literature and Reference Materials

CATALOG 4121-PACT

BALL VALVES: Pneumatic Actuators and Accessories (PDF)
