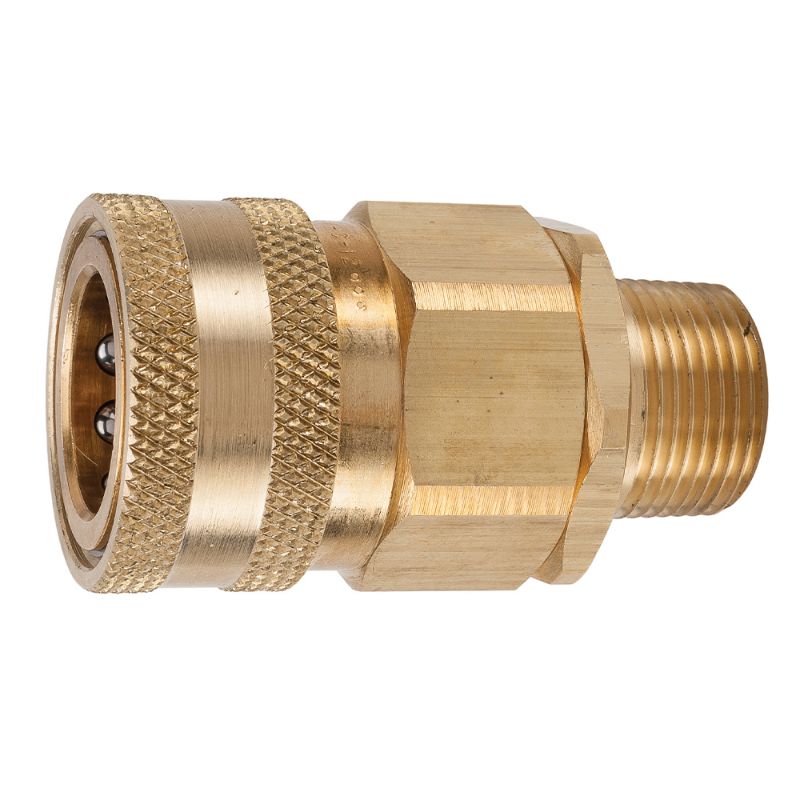

Parker BVHC12-12M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BVHC12-12M

$102.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.12464028776978417 lb
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Valve Type	Poppet
Application	General Purpose	Hex Size	1.50 inch
Plating Type	n/a	Body Material	Brass
Body Material	BRASS	Coupling Half	Female Coupler
Connection Thread Size (inch)	3/4 - 14	Connection Type	Male NPT
Body Size (inch)	3/4	Valve Type	Poppet
Maximum Operating Pressure	2000
