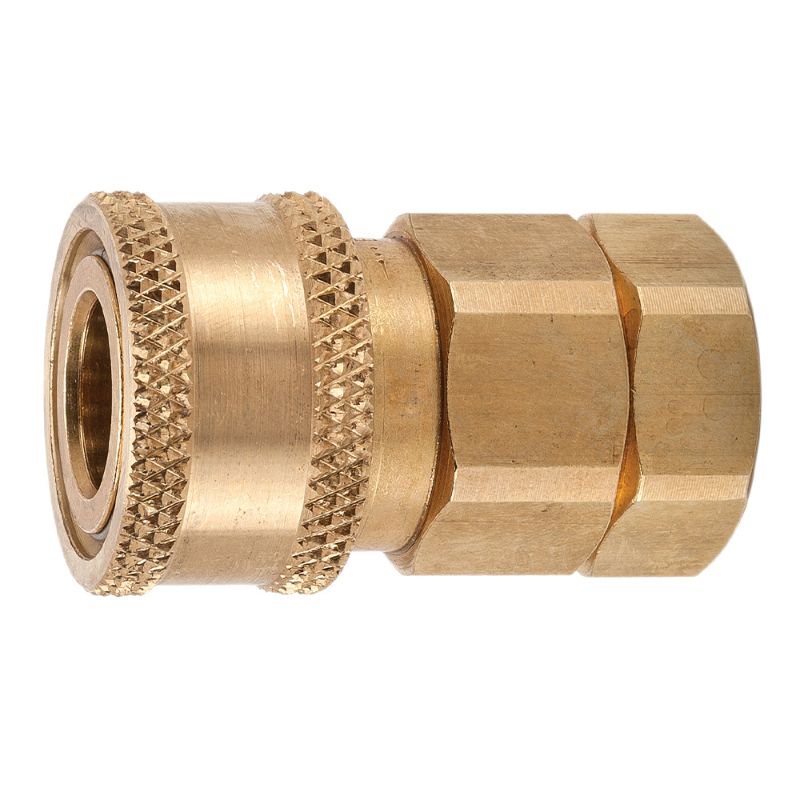

Picture of Parker BVHC12-12FV - General Purpose, Hydraulic Quick Couplings - H Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker BVHC12-12FV - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.
AFP Availability:
17 In Stock
West Knoxville, TN17
Partner Available:Quote Required
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. BVHC12-12FV
$113.22/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Operating Temperature400 °F
Hex Size1.50 inchBody MaterialBrass
Plating Typen/aProduct TypeManual Connect
ApplicationHydraulicsMinimum Operating Temperature-15 °F
Seal MaterialFluorocarbonValve TypePoppet
DivisionQuick Coupling DivisionBody MaterialBRASS
Coupling HalfFemale CouplerConnection TypeFemale NPTF
Connection Thread Size (inch)3/4 - 14Body Size (inch)3/4
Valve TypePoppetMaximum Operating Pressure2000
