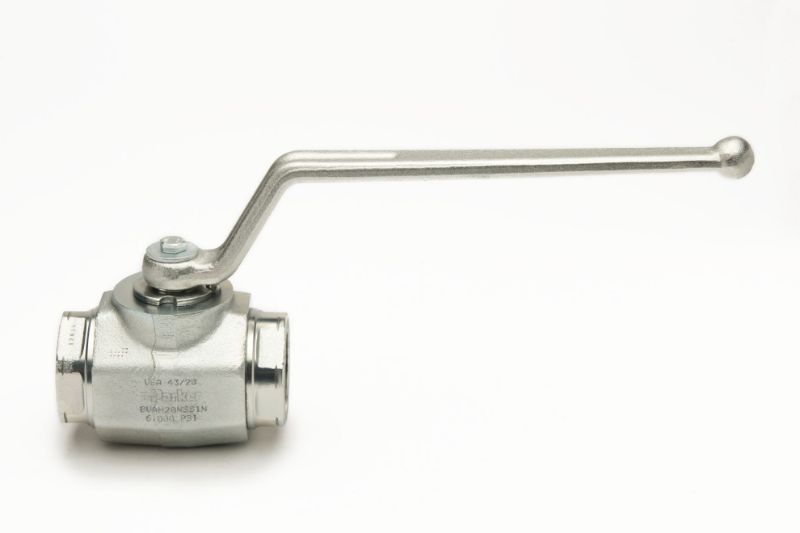

Parker BVAH20NSS1N - 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BVAH20NSS1N

$422.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	6000 psi
Seal Material	Nitrile	Connection Size	1-1/4 inch
Weight	9.25 lb	Function	2-Way
Handle Type	Standard Handle	Division	Hydraulic Valve Systems Division
Configuration	Inline	Connection Type	NPT
Maximum Operating Temperature	100 °F	Options	n/a
Mounting Type	Inline	Body Material	Steel
Minimum Operating Temperature	-20 °F	Product Type	2-Way Shut Off
Actuation Type	Manual	Connection Type	NPT
Connection Size	1-1/4"	Mounting Type	Inline
Product Type	2-Way Shut Off	Maximum Pressure (psi)	6000 PSI

Product resources

Literature and Reference Materials

CATALOG 4121-PACT

BALL VALVES: Pneumatic Actuators and Accessories (PDF)
