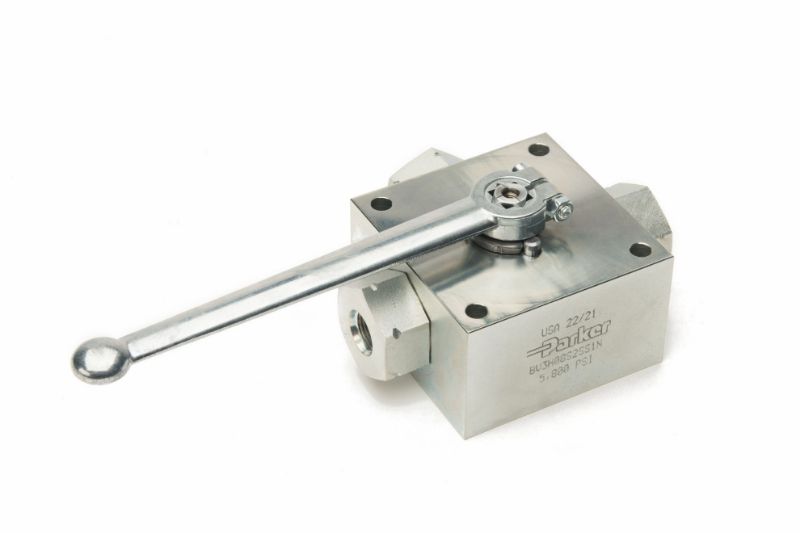

Parker BV3H08B1SS1VA - 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BV3H08B1SS1VA

$1,213.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	3-Way High Pressure
Connection Size	1/2 inch	Weight	7.5 lb
Seal Material	Fluorocarbon	Actuation Type	Manual
Maximum Operating Pressure	7250 psi	Handle Type	Locking Handle
Function	3-Way	Configuration	L-Bore 90 Degree; 3-Way Std.
Maximum Operating Temperature	100 °F	Connection Type	BSPP
Division	Hydraulic Valve Systems Division	Options	n/a
Body Material	Steel	Mounting Type	Inline
Minimum Operating Temperature	-20 °F	Connection Size	1/2"
Connection Type	BSPP	Mounting Type	Inline
Maximum Pressure (psi)	7250 PSI	Product Type	3-Way High Pressure

Product resources

Literature and Reference Materials

CATALOG 4121-PACT

BALL VALVES: Pneumatic Actuators and Accessories (PDF)
