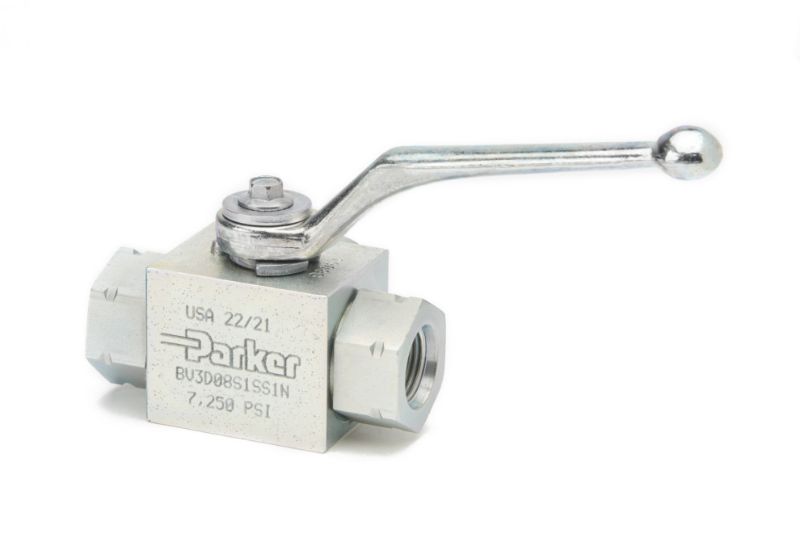

Parker BV3D04B1SS1N - 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BV3D04B1SS1N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Inline	Body Material	Steel
Maximum Operating Pressure	7250 psi	Seal Material	Nitrile
Product Type	3-Way Diverter	Actuation Type	Manual
Maximum Operating Temperature	100 °F	Connection Size	1/4 inch
Options	n/a	Connection Type	BSPP
Division	Hydraulic Valve Systems Division	Handle Type	Standard Handle
Weight	1.25 lb	Function	3-Way
Configuration	L-Bore Port Overlap	Minimum Operating Temperature	-20 °F
Product Type	3-Way Diverter	Maximum Pressure (psi)	7250 PSI
Mounting Type	Inline	Connection Type	BSPP
Connection Size	1/4"
