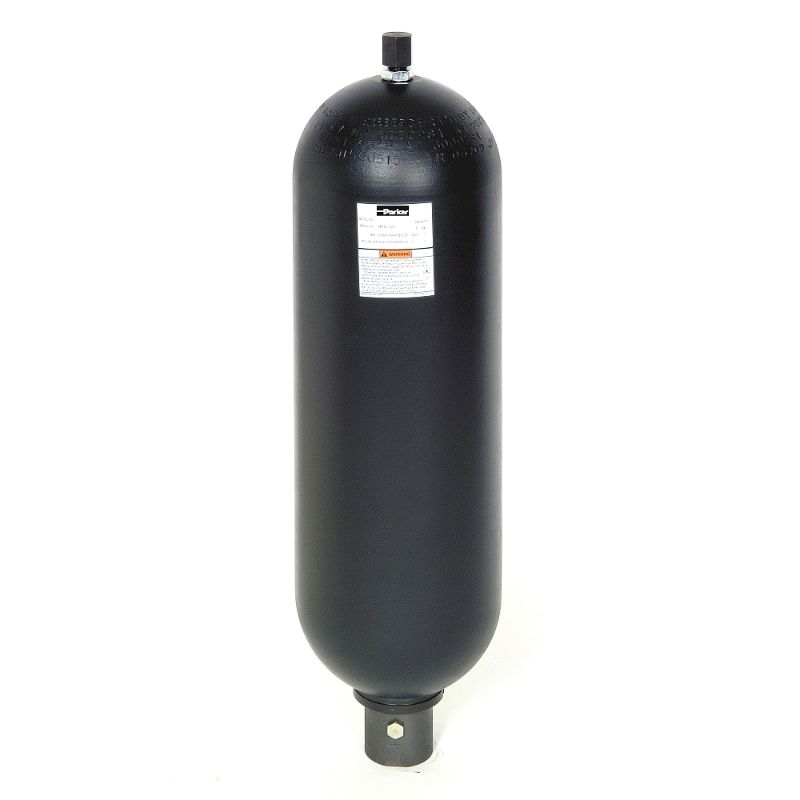

Parker BT02B3TF08A1 - Transfer Barrier Accumulators - BT Series - (Americas)

Transfer Barrier accumulators provide fluid separation where two different media must transfer pressure between each other without mixing. Also used as an accumulator in series with gas bottles where size constraints exist.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BT02B3TF08A1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Volume	9.45	Specifications Met	ASME
Diameter	9.06	Overall Length	21.37
Maximum Operating Pressure	206.8	Repairable	Bottom Repairable
Division	Accumulator and Cooler Division	Body Material	Chrome-molybdenum Alloy Steel
Elastomer Material	EPR	Outlet Port Connection Type	Code 61 Flange
Volume (Gallons)	2.5 gallons	Outlet Port Size (inch)	2"
Inlet Port Connection Type	SAE	Inlet Port Size (inch)	#12 ( 1-1/16"-12 )
Fluid Type	Oil Service	Maximum Operating Pressure (psi)	3,000 psi
