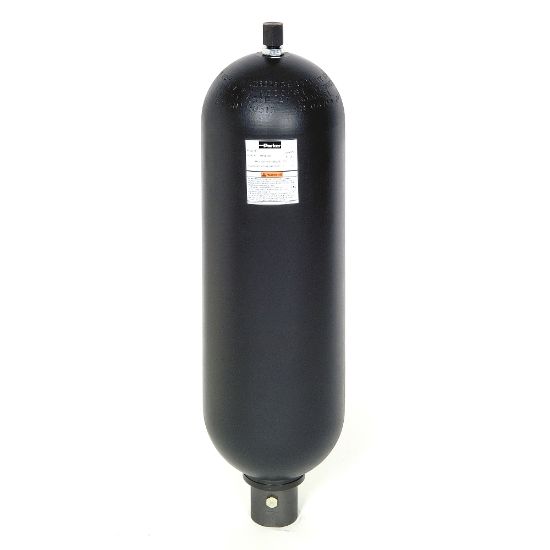

Parker BT02B3TF06A1 - Transfer Barrier Accumulators - BT Series - (Americas)

Transfer Barrier accumulators provide fluid separation where two different media must transfer pressure between each other without mixing. Also used as an accumulator in series with gas bottles where size constraints exist.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BT02B3TF06A1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Volume	9.45	Maximum Operating Pressure	206.8
Repairable	Bottom Repairable	Specifications Met	ASME
Diameter	9.06	Overall Length	21.37
Division	Accumulator and Cooler Division	Body Material	Chrome-molybdenum Alloy Steel
Outlet Port Connection Type	Code 61 Flange	Volume (Gallons)	2.5 gallons
Inlet Port Connection Type	SAE	Outlet Port Size (inch)	2"
Elastomer Material	Butyl	Inlet Port Size (inch)	#12 ( 1-1/16"-12 )
Maximum Operating Pressure (psi)	3,000 psi	Fluid Type	Oil Service
