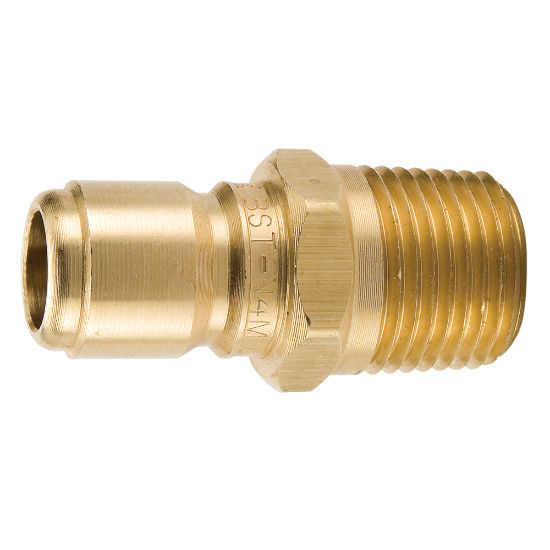

Parker BST-N8M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Name: Parker BST-N8M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series
SKU: BST-N8M
Price: 33.03 USD
Availability: InStock

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

AFP Availability:

2 Limited Stock

Sumter, SC	1
Summerville, SC	1

Partner Available:

180 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. BST-N8M

$33.03/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	n/a
Valve Type	Unvalved	Dimensional Weight	0.12464028776978417 lb
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Hex Size	1.38 inch	Body Material	Brass
Application	Hydraulics	Minimum Operating Temperature	-40 °F
Plating Type	n/a	Product Type	Push to Connect
Flow Rate	50 Gal/min	Maximum Operating Pressure	1200
Body Material	BRASS	Body Size (inch)	1
Connection Type	Male NPTF	Coupling Half	Male Nipple
Connection Thread Size (inch)	1 - 11 1/2

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
